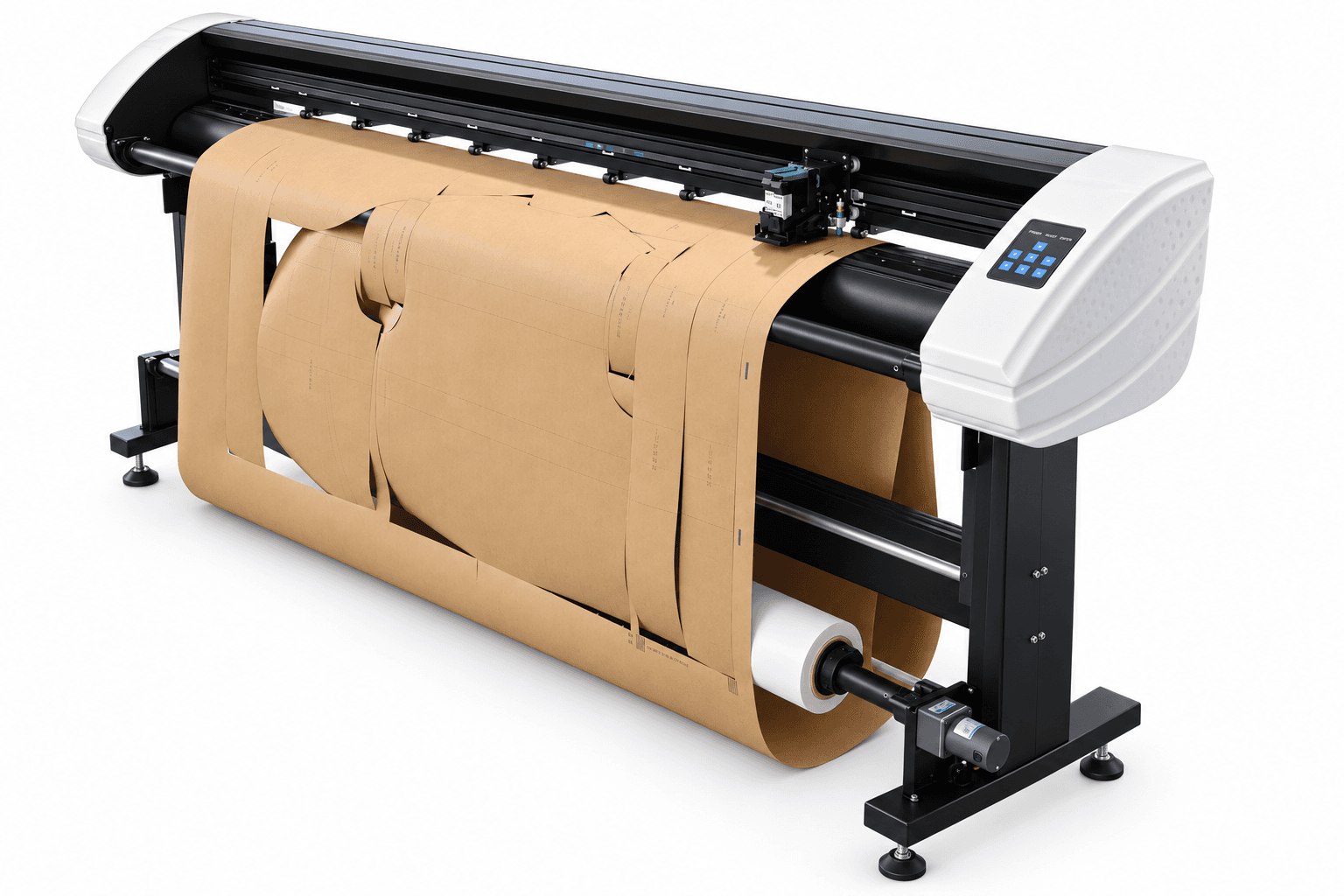

Integrated Output
Draw and cut patterns in one machine, or use it for standalone plotting when cutting is not required.
Plot & Cut
Vertical Cutting Plotter
One route from printed line to cut pattern.
A Focused Place in the Pattern Workflow.
An integrated plotting and cutting solution intended to reduce secondary pattern handling. It brings printing and cutting into a connected pattern room process.
- Pattern plotting with cutting, or standalone plotting
- Two easy-to-replace Wecare 45A ink cartridges
- Paper transmission designed for accurate alignment over 100 m
- Rotating knife with a maximum cutting speed of 1,200 mm/s
- Quoted as 3–5 times the efficiency of manual drawing and cutting
- Optional dual-feeding structure for production flexibility
Key Figures
Four model widths are available with two Wecare 45A cartridges and a rotating cutting knife.
- Printing width
- 120–200 cm
- Cutting width
- 120–180 cm
- Printing speed
- 60–80 m²/h
- Maximum cutting speed
- 1,200 mm/s
Designed for Practical Output.

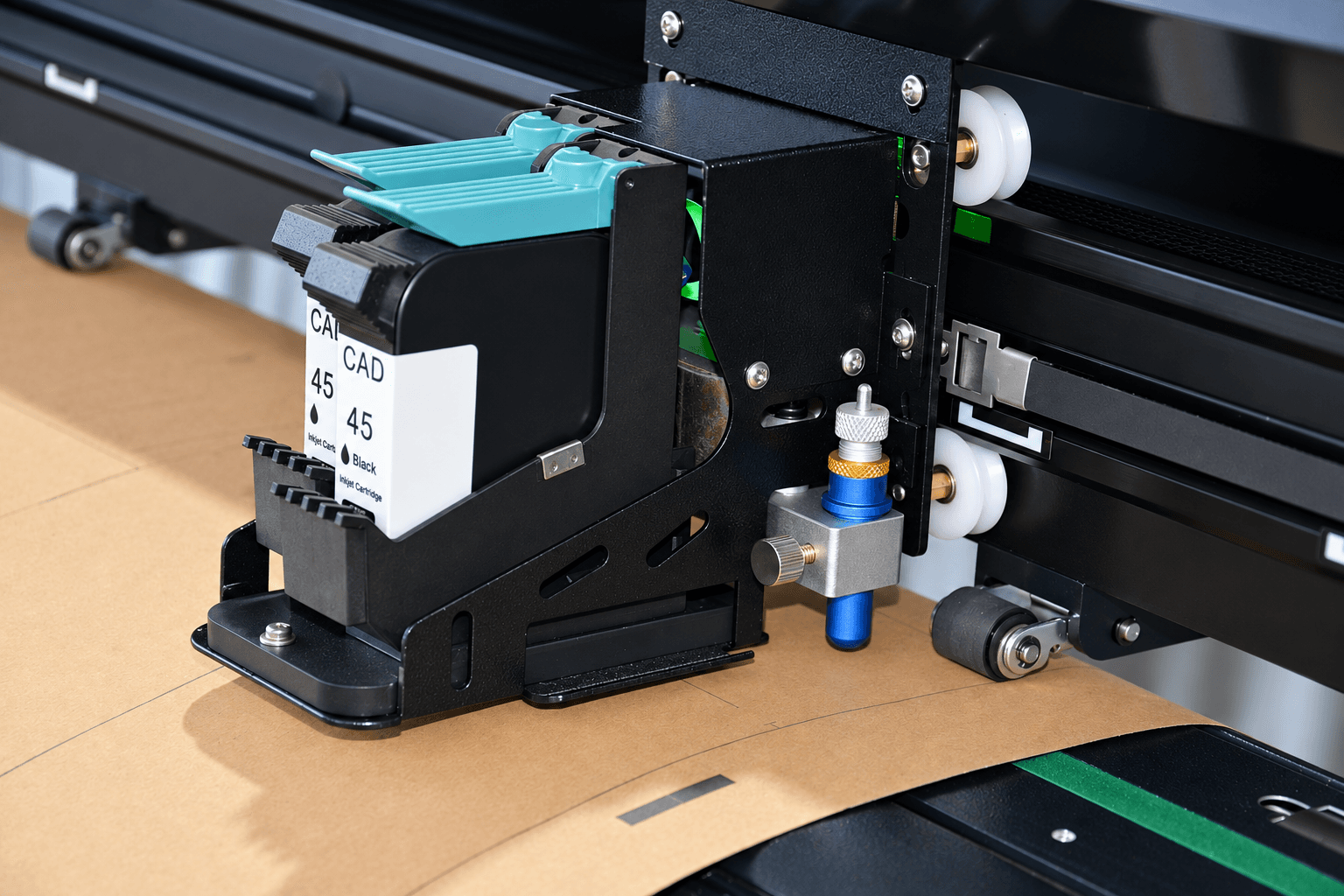

Rotating Knife System
The rotating knife supports cutting speeds up to 1,200 mm/s across maximum cutting widths from 120 to 180 cm.

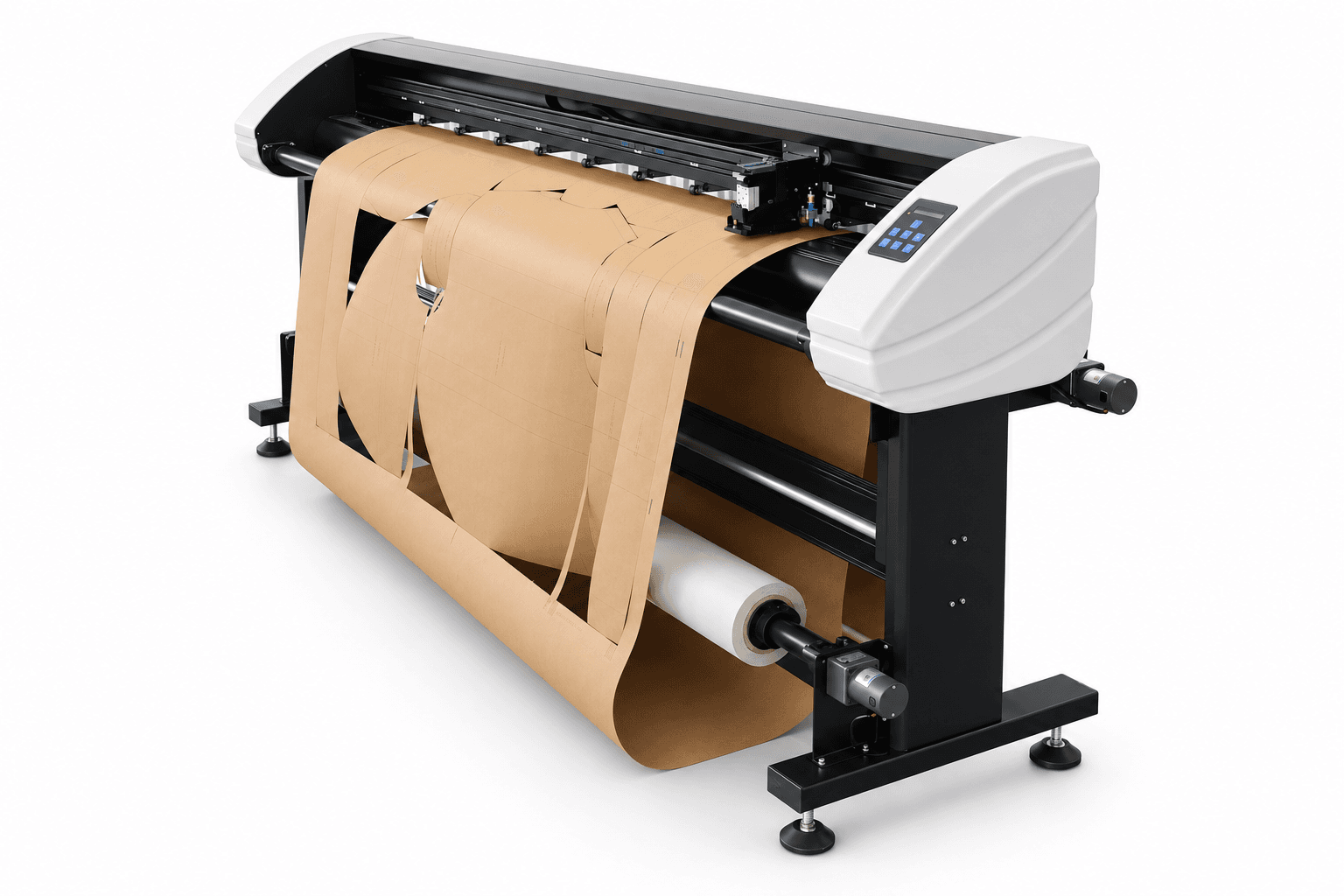

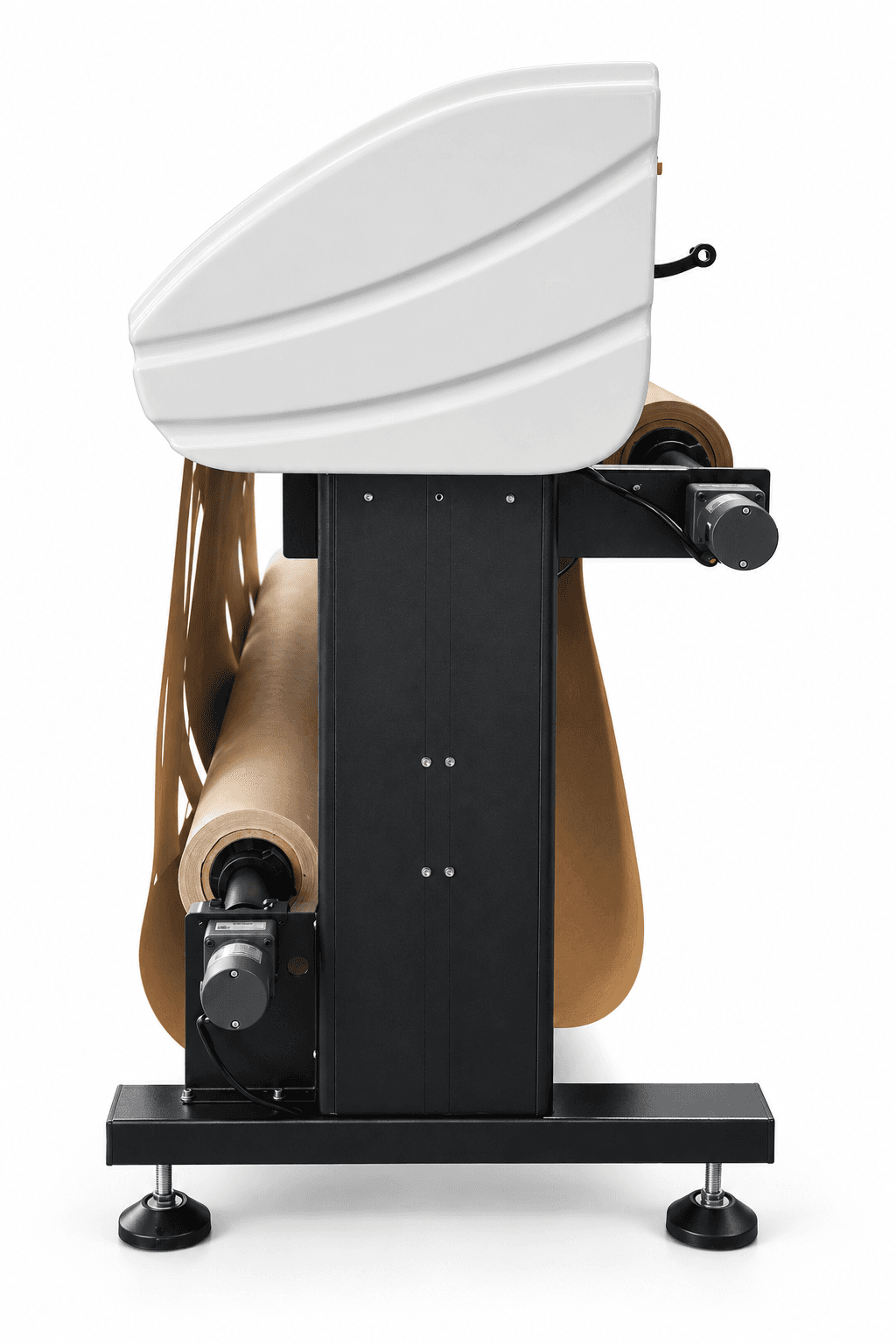

Automatic Media Handling
Automatic feeding and an optional dual-feeding structure support continuous garment CAD workflows and 100 m paper alignment.
Technical Specifications
Current values remain intentionally unclaimed until product data is confirmed.
Printing & Cutting System
5 specifications- Number of cartridges
- 2
- Cartridge type
- Wecare 45A ink cartridge
- Cutting tool
- Rotating knife
- Printing speed
- 60–80 m²/h
- Maximum cutting speed
- 1,200 mm/s
Media Handling
4 specifications- Media weight
- 40–250 g/m²
- Feeding system
- Automatic feeding
- Dual feeding
- Optional
- Supported cutting media
- CAD drawing paper, roll marking paper, kraft paper and similar media
Connectivity & Operating Conditions
5 specifications- Hardware interface
- USB / Network cable
- Compatible software
- Most garment CAD software
- Data formats
- HPGL / PLT
- Working temperature
- 0–40°C
- Power supply
- AC 220 V / 110 V ±10%, 50/60 Hz
Applications
1 specification- Industries
- Clothing, shoes and caps, bags and luggage, home textiles and related industries
WS-120PQ
4 specifications- Maximum cutting width
- 120 cm
- Maximum printing width
- 120 cm
- Machine size (L × W × H)
- 185 × 58 × 103 cm
- Packing size (L × W × H)
- 98 × 61 × 56 cm
WS-160PQ
4 specifications- Maximum cutting width
- 160 cm
- Maximum printing width
- 160 cm
- Machine size (L × W × H)
- 258 × 58 × 103 cm
- Packing size (L × W × H)
- 238 × 61 × 56 cm
WS-180PQ
4 specifications- Maximum cutting width
- 160 cm
- Maximum printing width
- 180 cm
- Machine size (L × W × H)
- 245 × 58 × 103 cm
- Packing size (L × W × H)
- 258 × 61 × 56 cm
WS-200PQ
4 specifications- Maximum cutting width
- 180 cm
- Maximum printing width
- 200 cm
- Machine size (L × W × H)
- 265 × 58 × 103 cm
- Packing size (L × W × H)
- 278 × 61 × 56 cm
Product Gallery

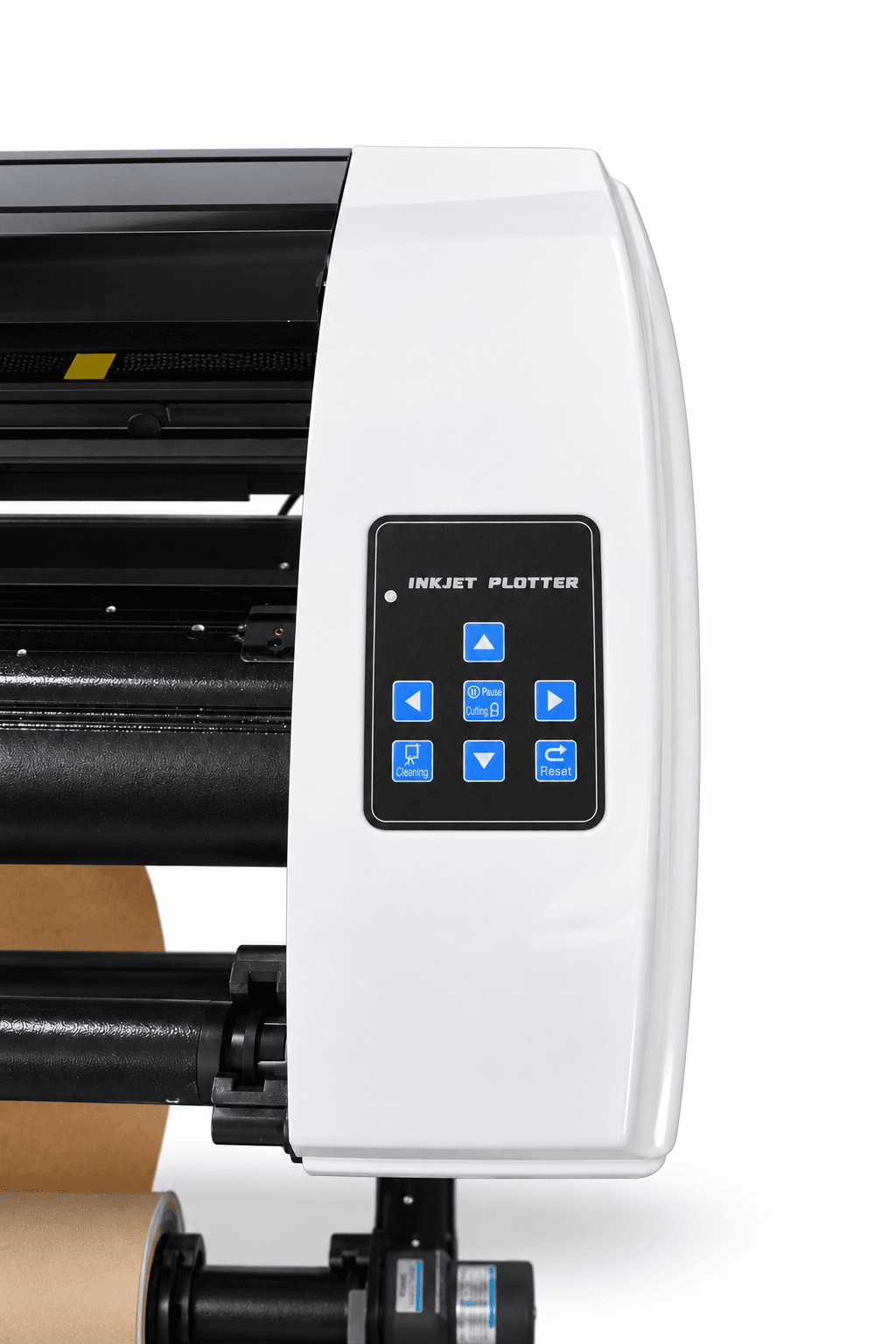

Views of the complete machine, media handling, operator controls and integrated print-and-cut carriage.
