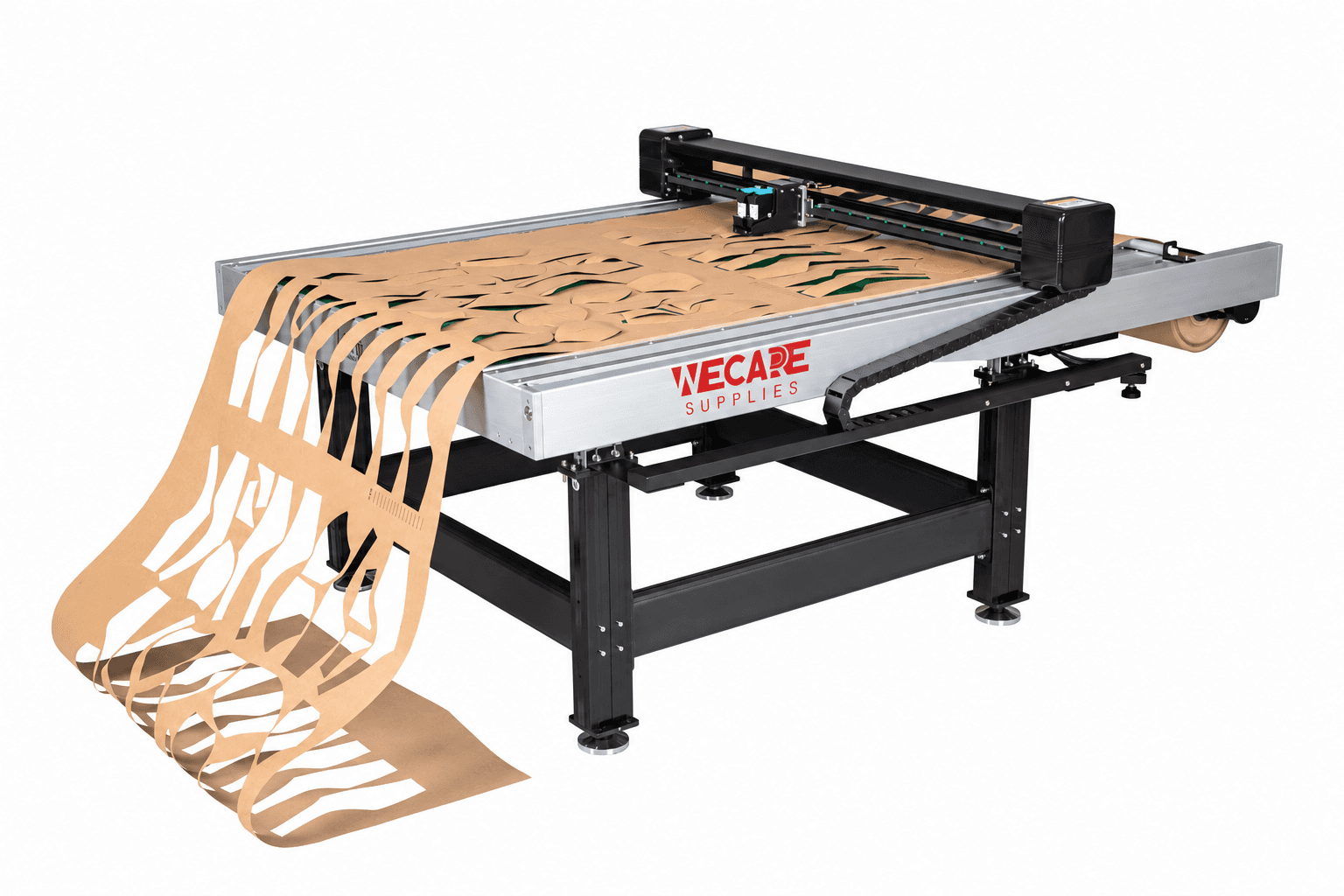

Honeycomb Vacuum Flatbed
The lightweight aluminum-alloy honeycomb platform uses a low-noise negative-pressure air intake system to hold marker or kraft paper during output.
Digital Pattern Cutting

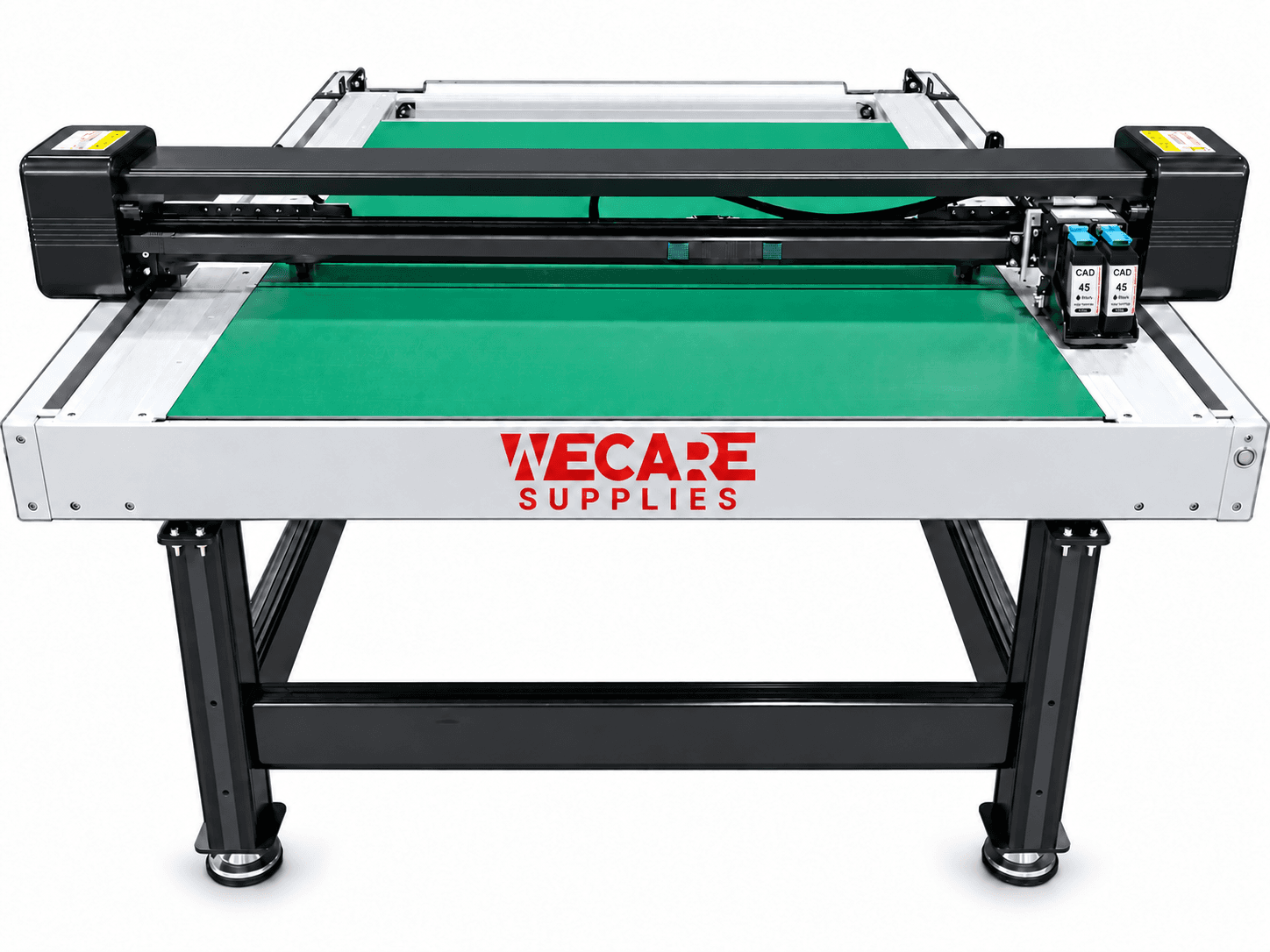

Flatbed Cutting Plotter
Fast, precise plotting and cutting on a stable vacuum flatbed.
A Focused Place in the Pattern Workflow.
A flatbed plotting and cutting platform for garment marker paper and kraft paper. It combines HP 51645A inkjet printing, one or two cutting tools, a lightweight aluminum-alloy honeycomb bed and a low-noise vacuum system in a choice of three working areas.
- 600 DPI line printing with two HP 51645A nozzles
- Repeat cutting precision rated at 0.01 mm
- Servo configuration reaches 1,200 mm/s printing and 1,500 mm/s cutting
- Network-cable document transfer with Windows compatibility
- Automatic file recording and saving for more efficient nesting
- Flexible origin setting with automatic return after the job finishes
- Optional continuous plotting and cutting system
Key Figures
Three working-area sizes are available with either a stepping or servo motion system.
- Working area
- 120 × 90 to 150 × 120 cm
- Repeat cutting precision
- 0.01 mm
- Maximum printing speed
- 1,200 mm/s
- Maximum cutting speed
- 1,500 mm/s
Designed for Practical Output.

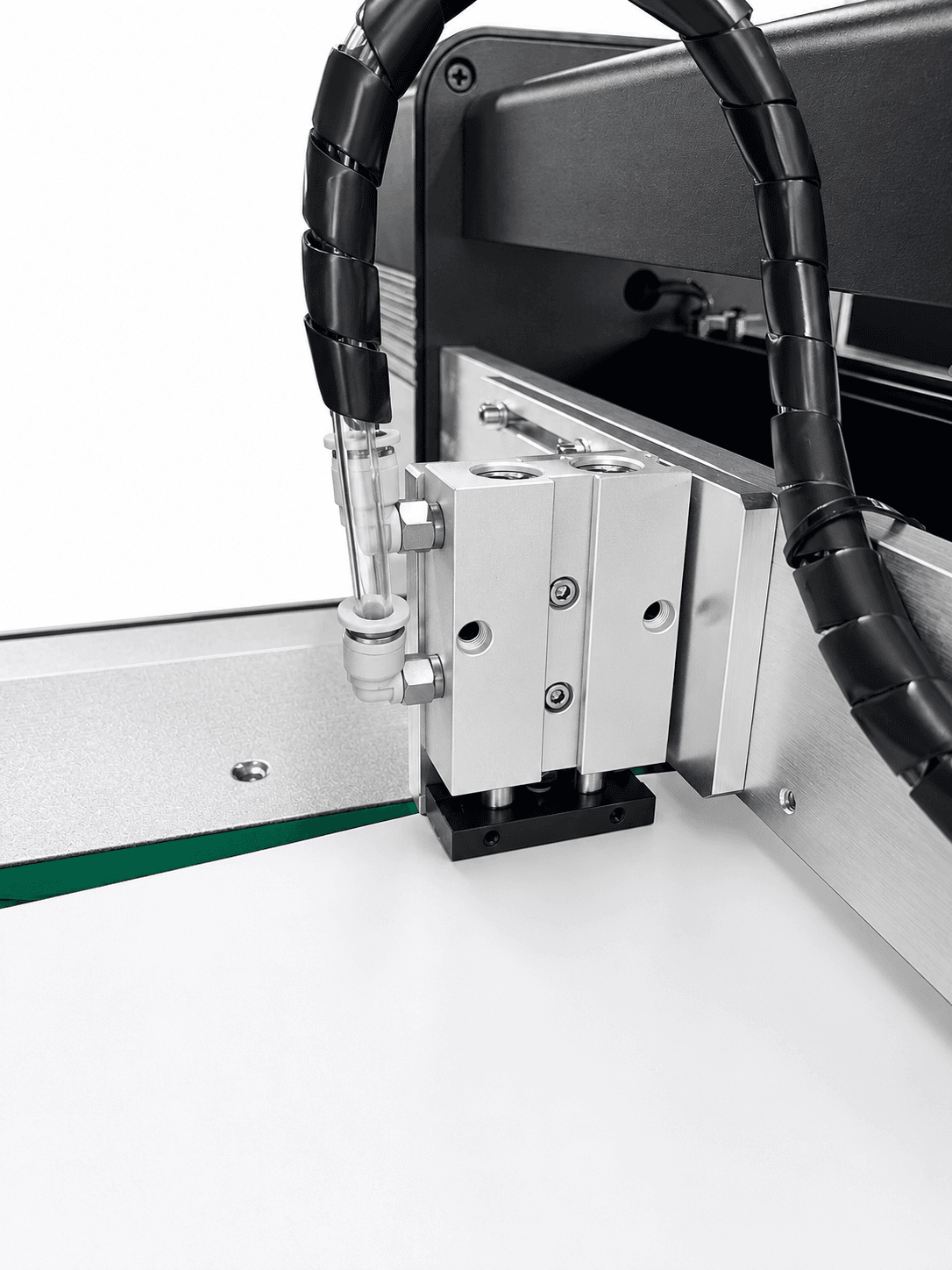

Integrated Printing & Cutting
Two HP 51645A nozzles produce clear 600 DPI lines, while one or two cutters support accurate contour cutting with rated repeat precision of 0.01 mm.

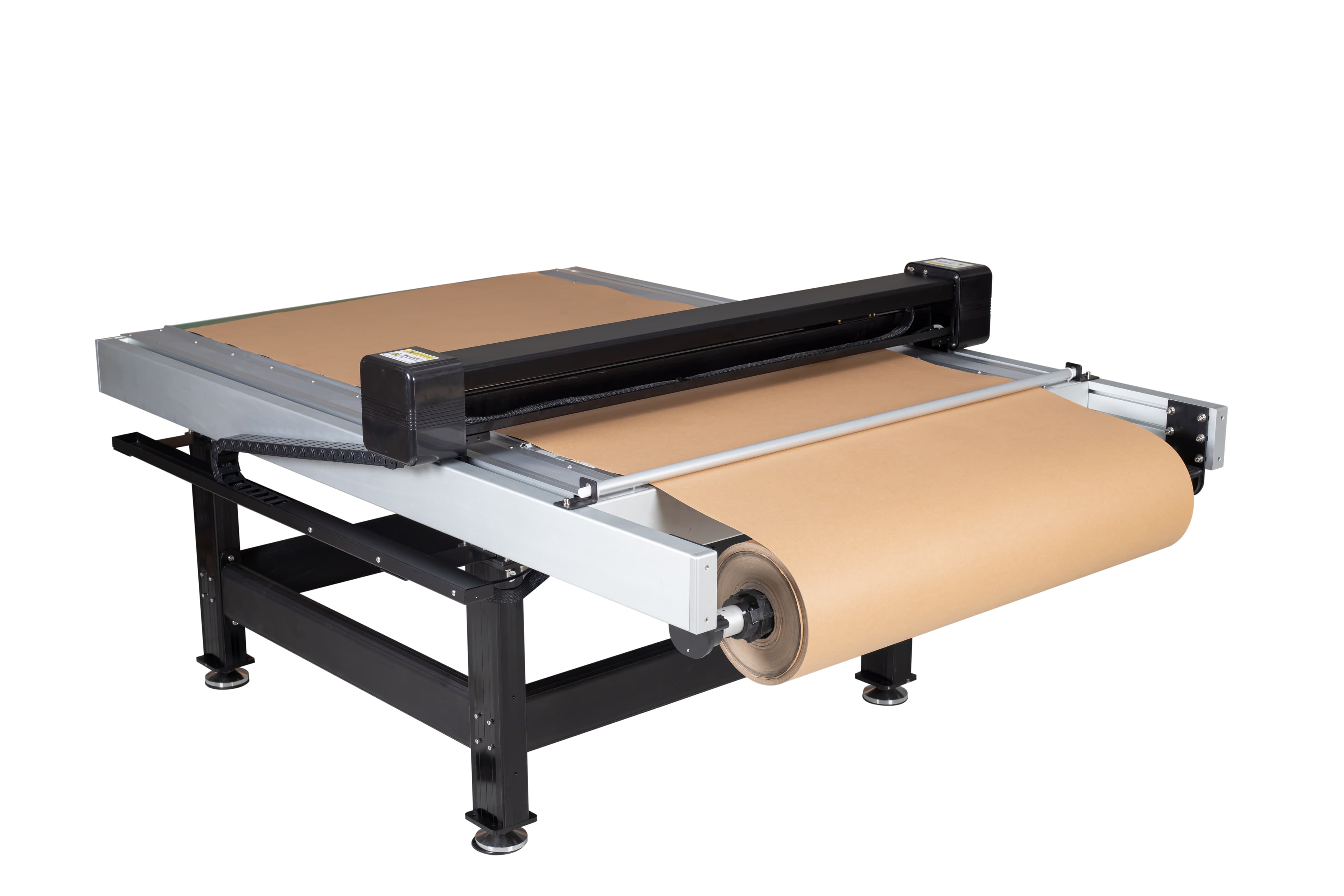

Continuous Media Handling
The optional continuous plotting and cutting system feeds roll media across the flatbed for longer pattern-room jobs while preserving the stable working surface.
Technical Specifications
Values are transcribed from the supplied product sheet. The listed 80–500 g ‘paper thickness’ appears to describe media weight; no area basis is provided. Speed maxima refer to the servo configuration.
Printing & Cutting System
6 specifications- Printing resolution
- 600 DPI
- Repeat cutting precision
- 0.01 mm
- Ink cartridge
- HP 51645A
- Number of nozzles
- 2
- Number of cutters
- 1 or 2
- S-curve algorithm
- TrueType S-curve; zero arc error (as stated)
Speed & Media
6 specifications- Printing speed · stepping system
- 800 mm/s
- Printing speed · servo system
- 1,200 mm/s
- Cutting speed · stepping system
- 800 mm/s
- Cutting speed · servo system
- 1,500 mm/s
- Supported paper
- Marker paper and kraft paper
- Media weight · as listed
- 80–500 g; heavier media can be customized
Platform & Connectivity
6 specifications- Working platform
- Lightweight aluminum-alloy honeycomb bed
- Vacuum system
- Low-noise negative-pressure air intake
- Communication
- Network cable
- Operating system
- Windows systems (as stated)
- Power supply
- AC 220 V, 50/60 Hz
- Power system
- Original Taiwan MEAN WELL dual power supply (as stated)
WS1209-BI / WS1209-SF
3 specifications- Stepping-system model
- WS1209-BI
- Servo-system model
- WS1209-SF
- Working area (L × W)
- 120 × 90 cm
WS1509-BI / WS1509-SF
3 specifications- Stepping-system model
- WS1509-BI
- Servo-system model
- WS1509-SF
- Working area (L × W)
- 150 × 90 cm
WS1512-BI / WS1512-SF
3 specifications- Stepping-system model
- WS1512-BI
- Servo-system model
- WS1512-SF
- Working area (L × W)
- 150 × 120 cm
Product Gallery

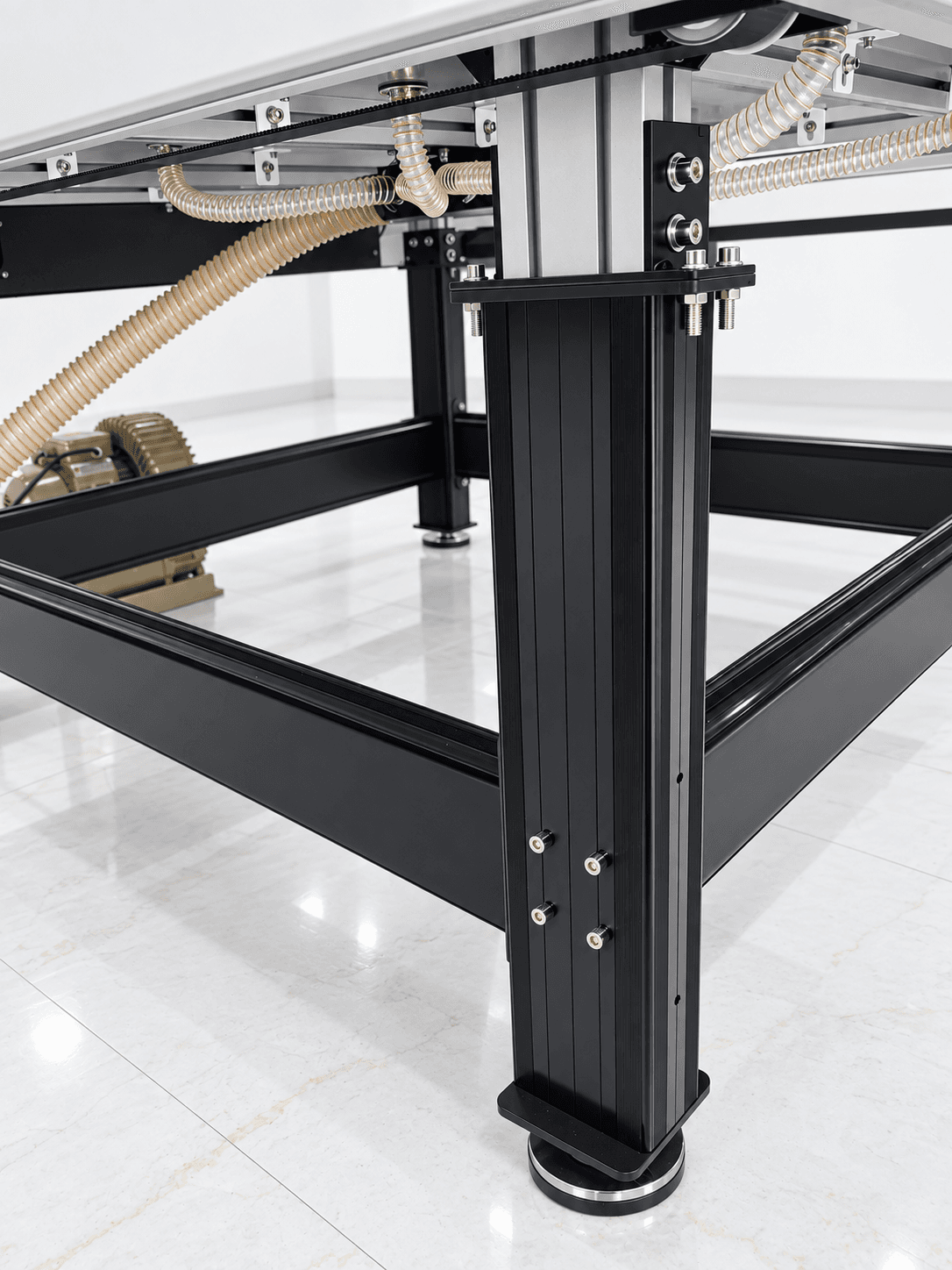

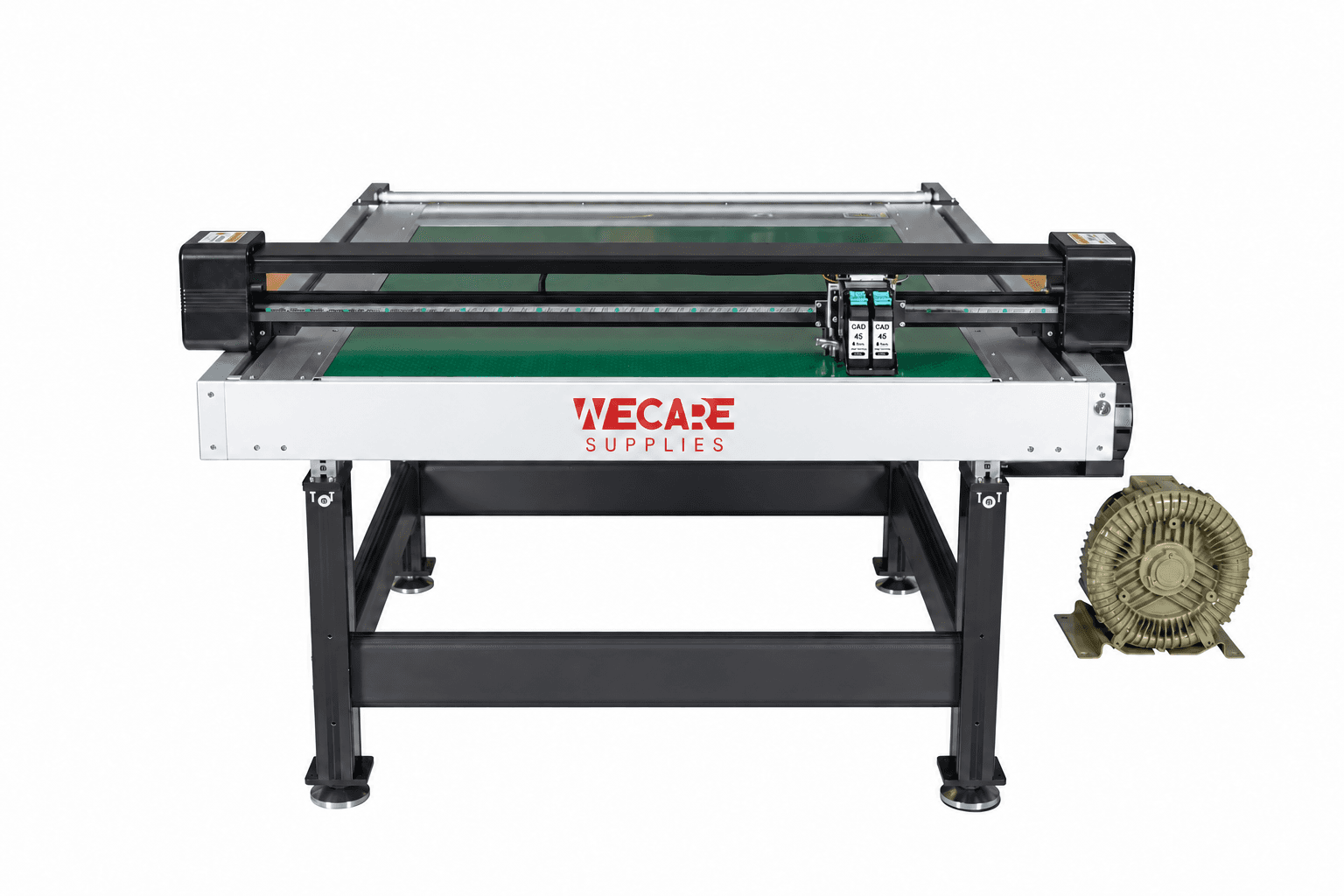

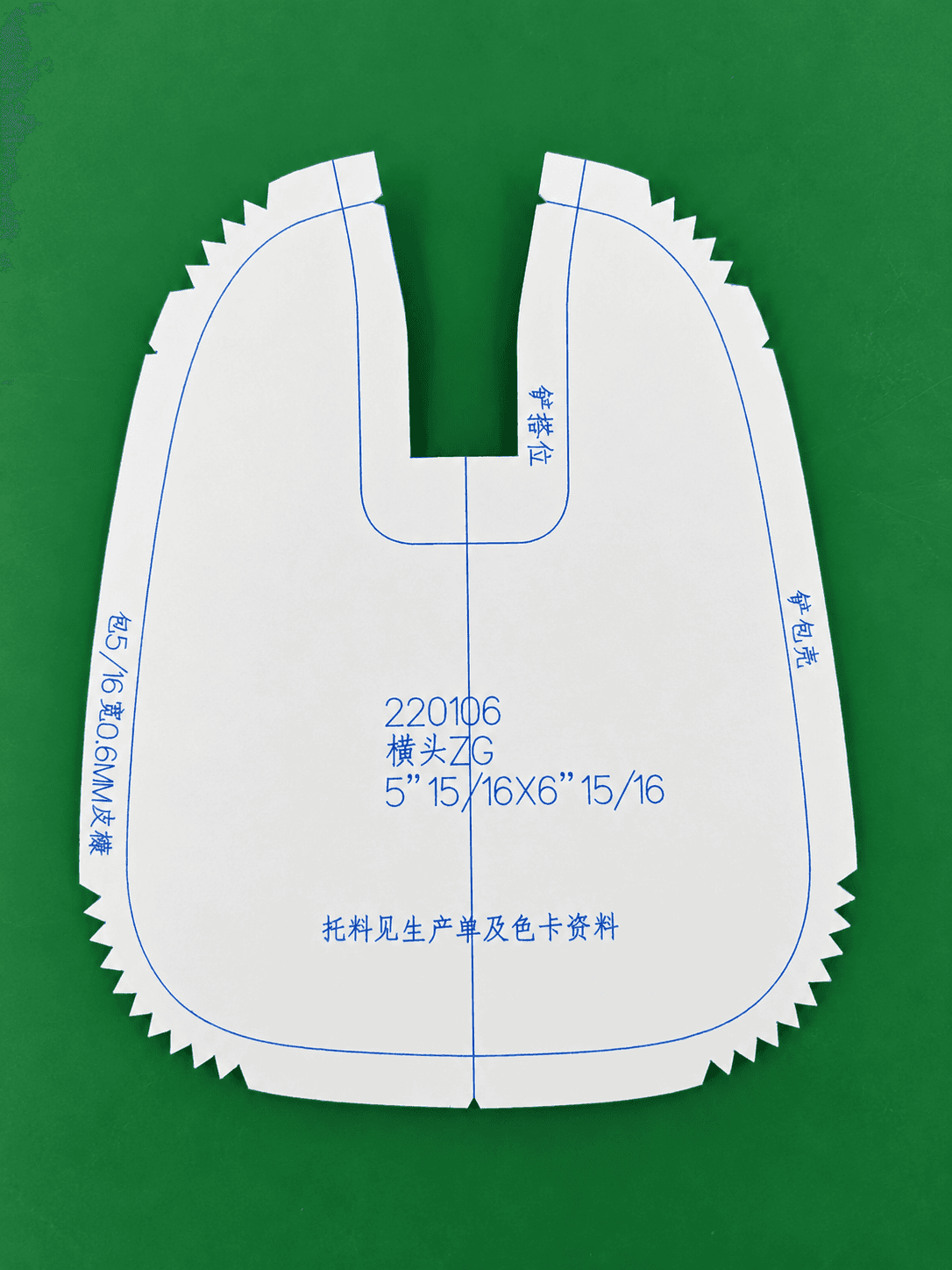

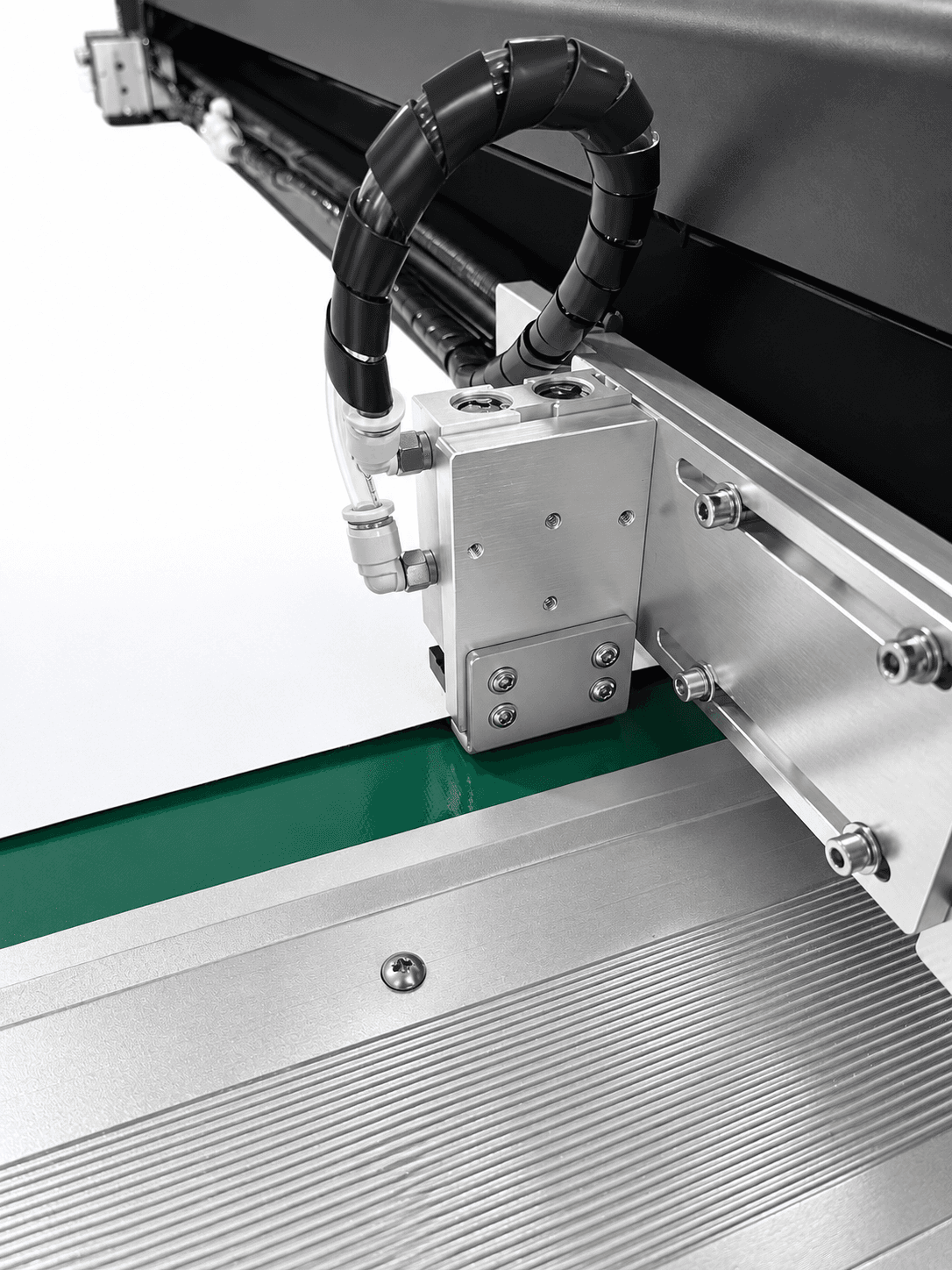

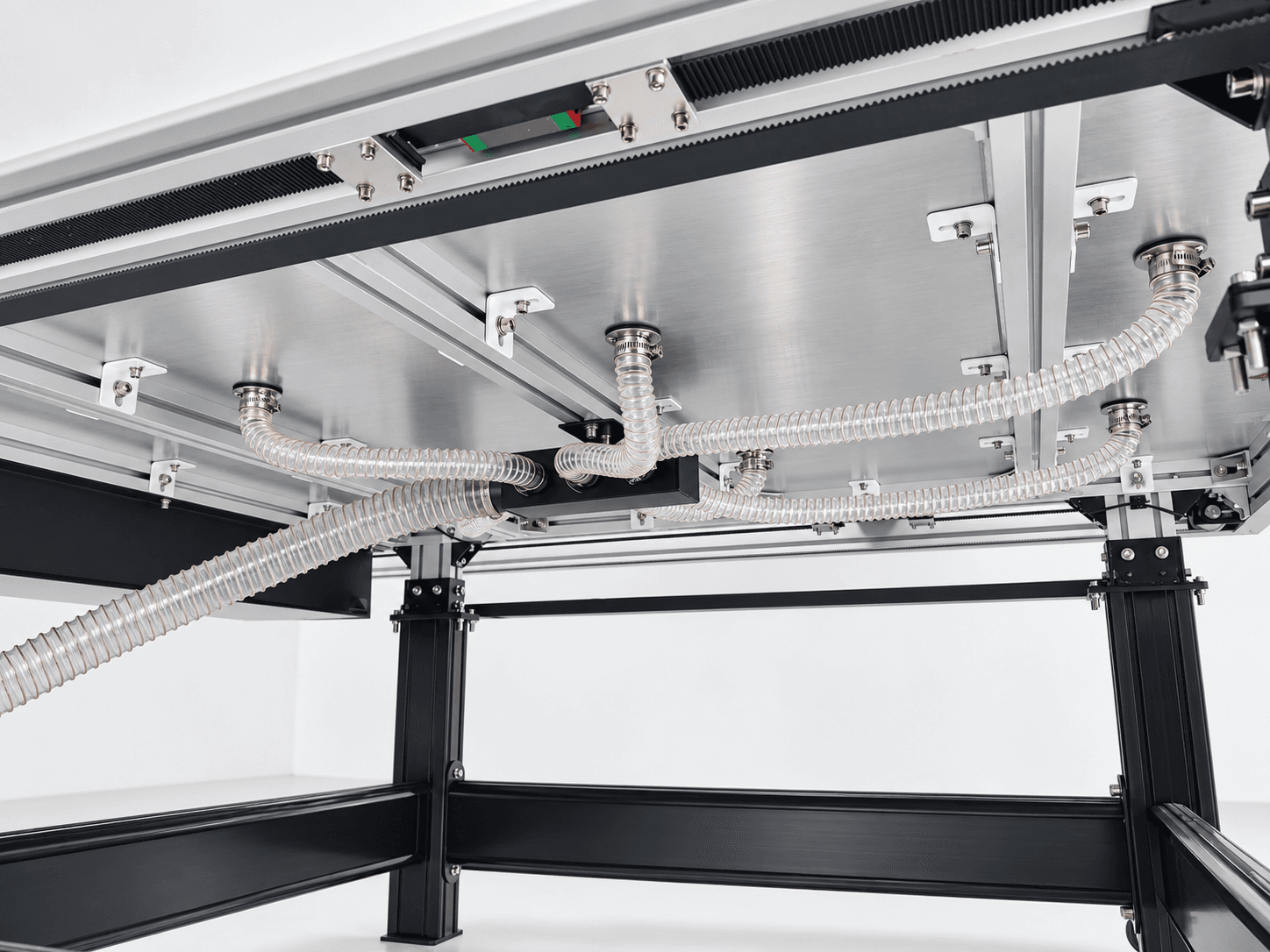

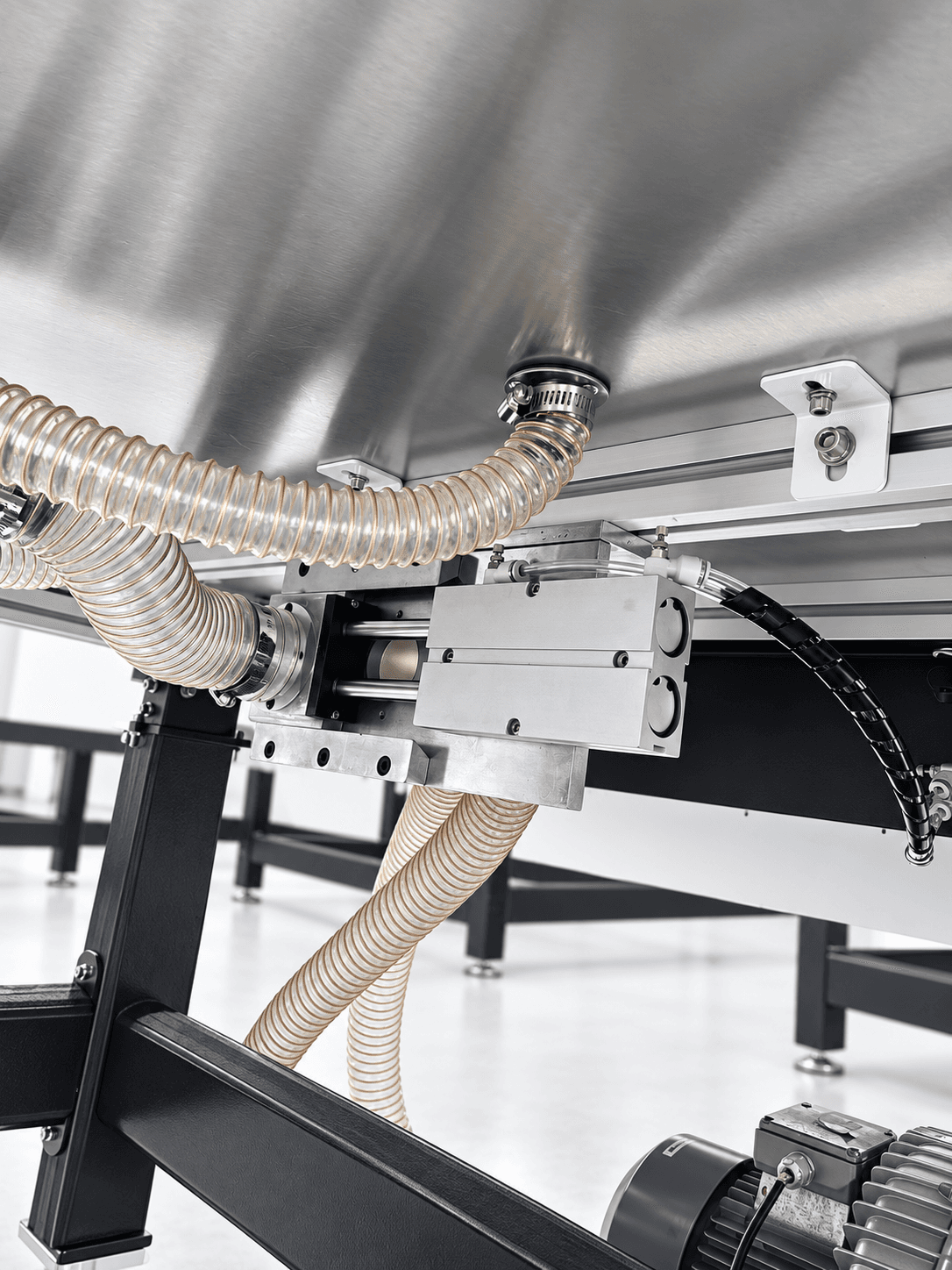

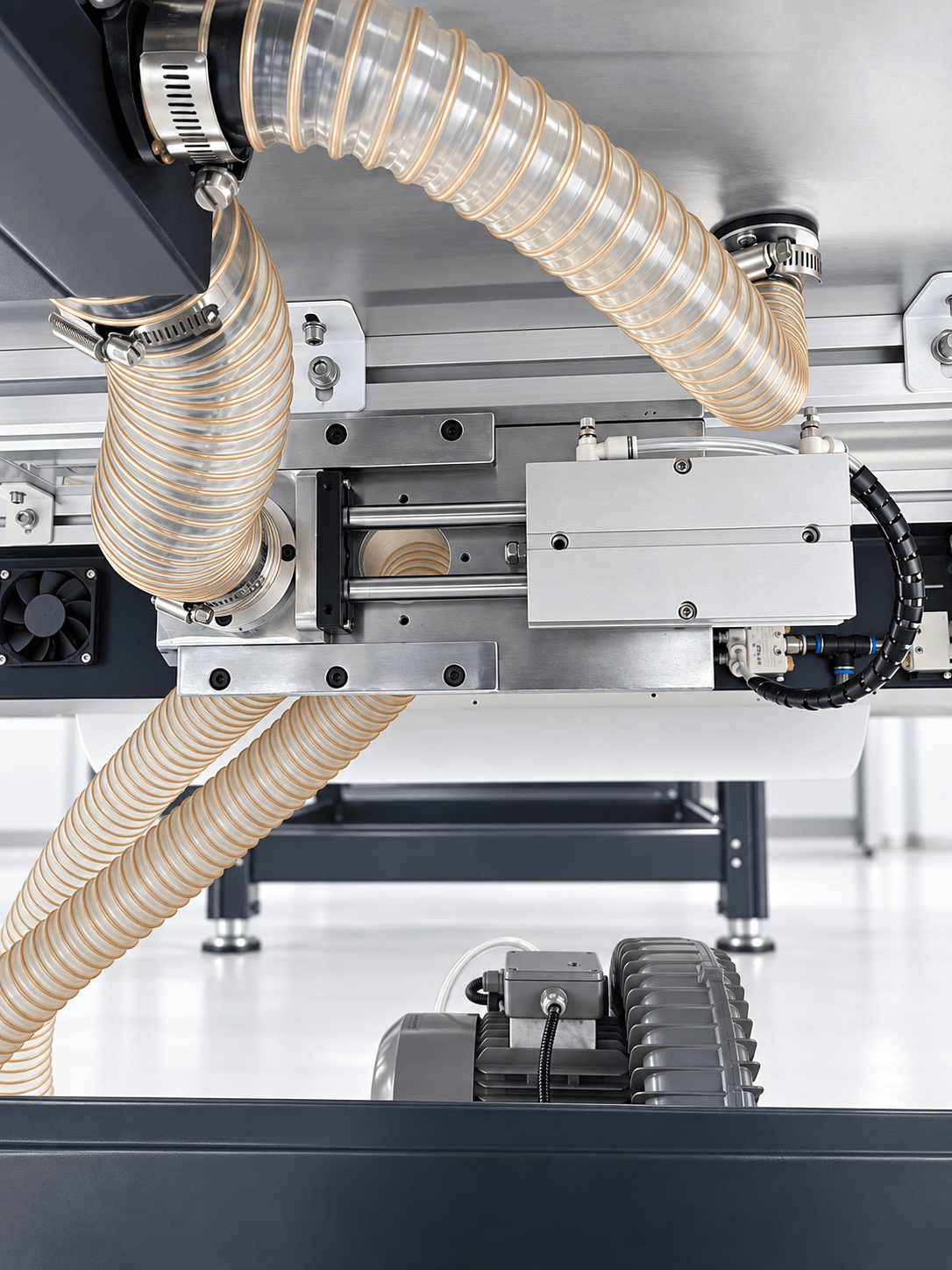

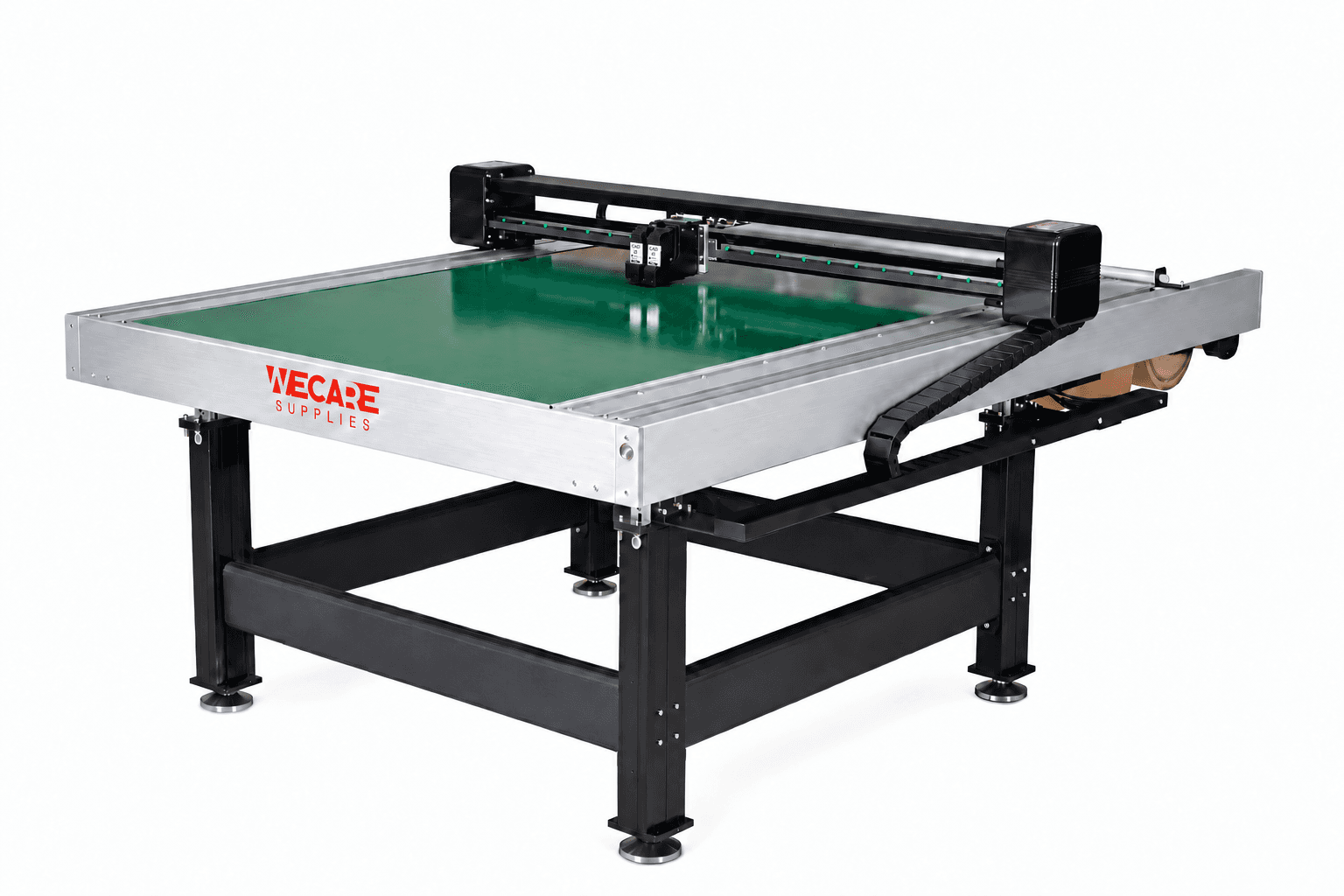

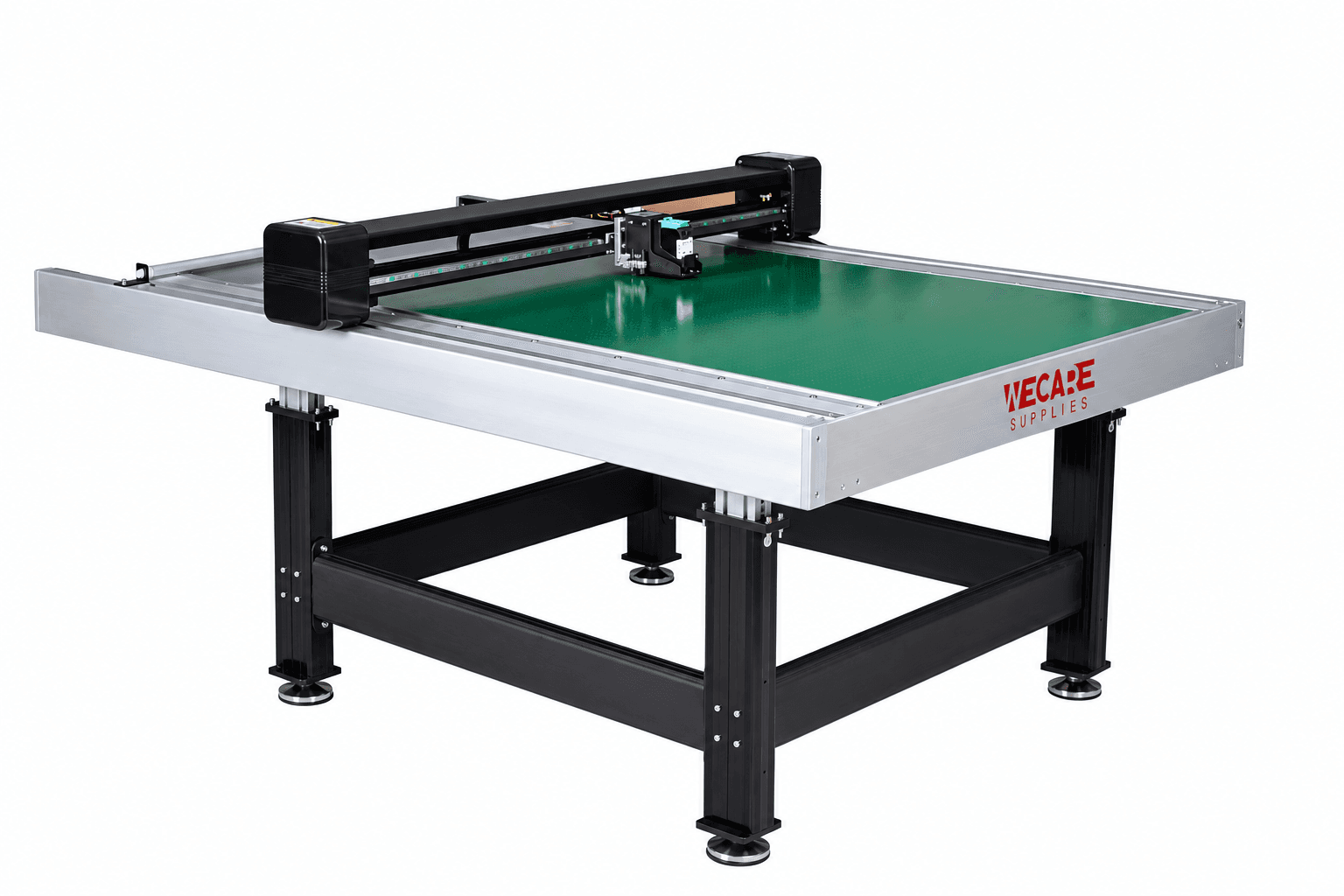

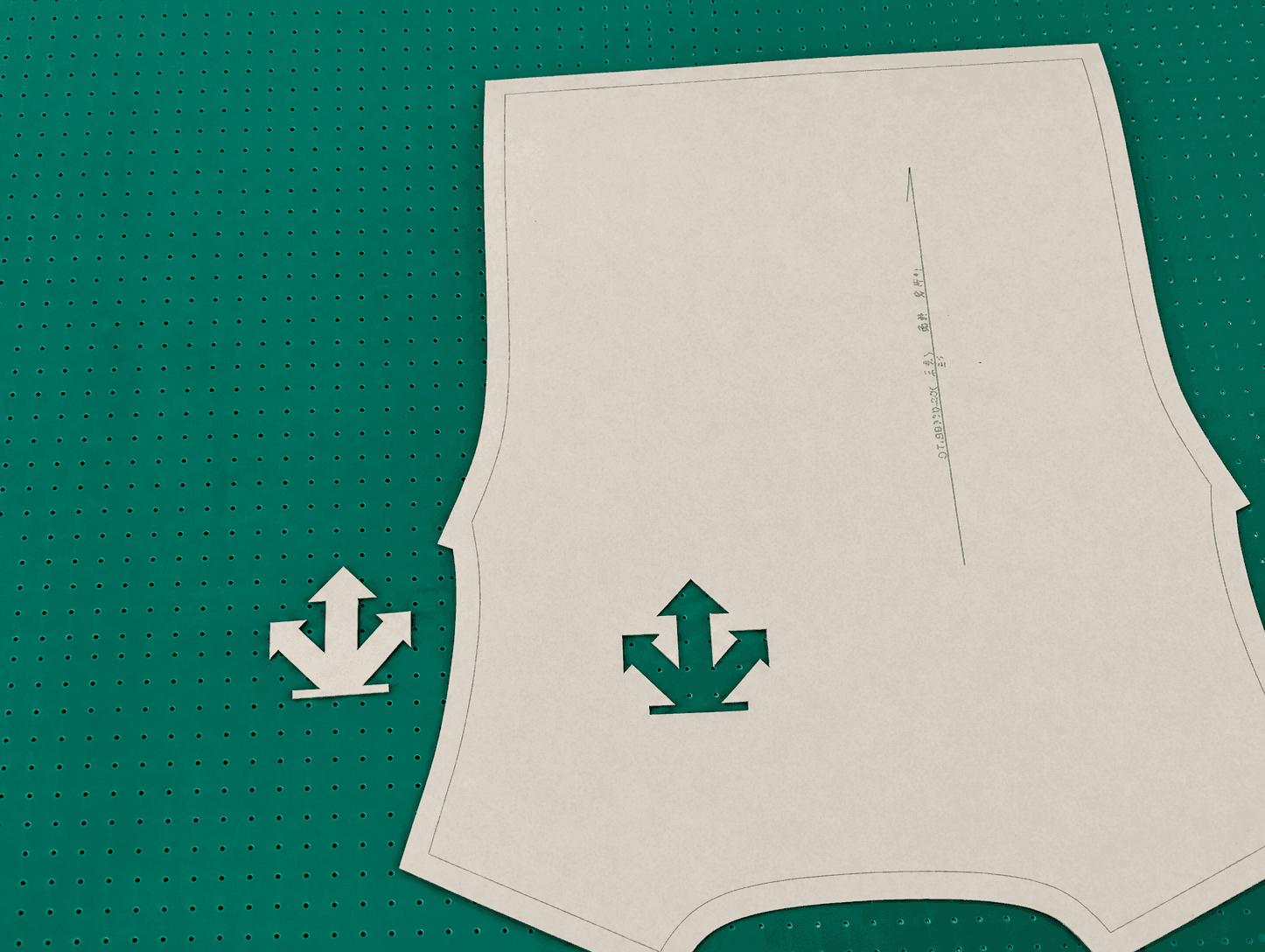

Complete machine views, cut pattern samples, print-and-cut carriage details and the vacuum system beneath the working bed.
