HP45 Printing Platform

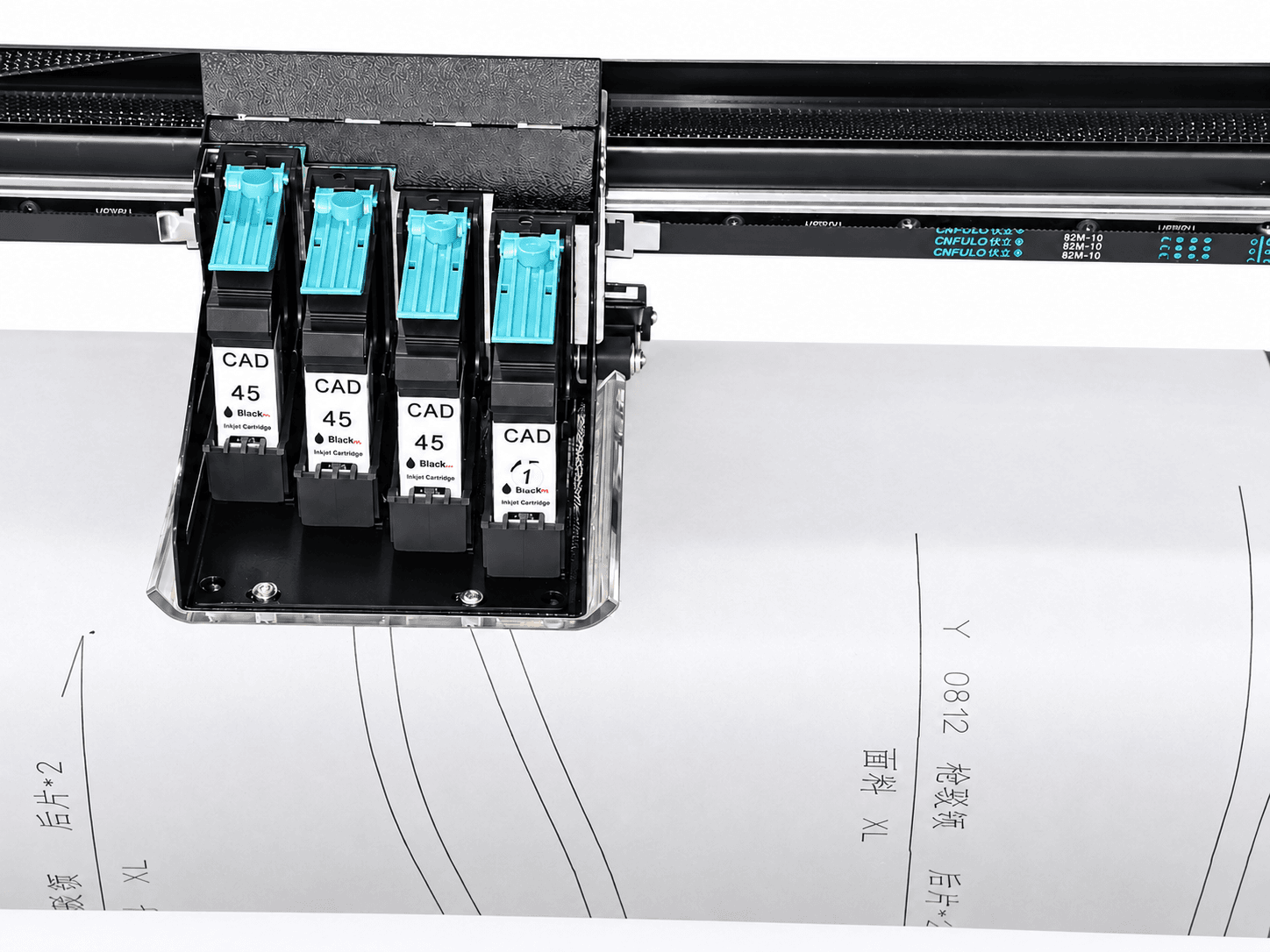

Choose 2 or 4 easy-to-replace HP45A ink cartridges, with maximum plotting speeds of 90 or 160 m²/h and a resolution of 150–600 DPI.
Pattern Printing

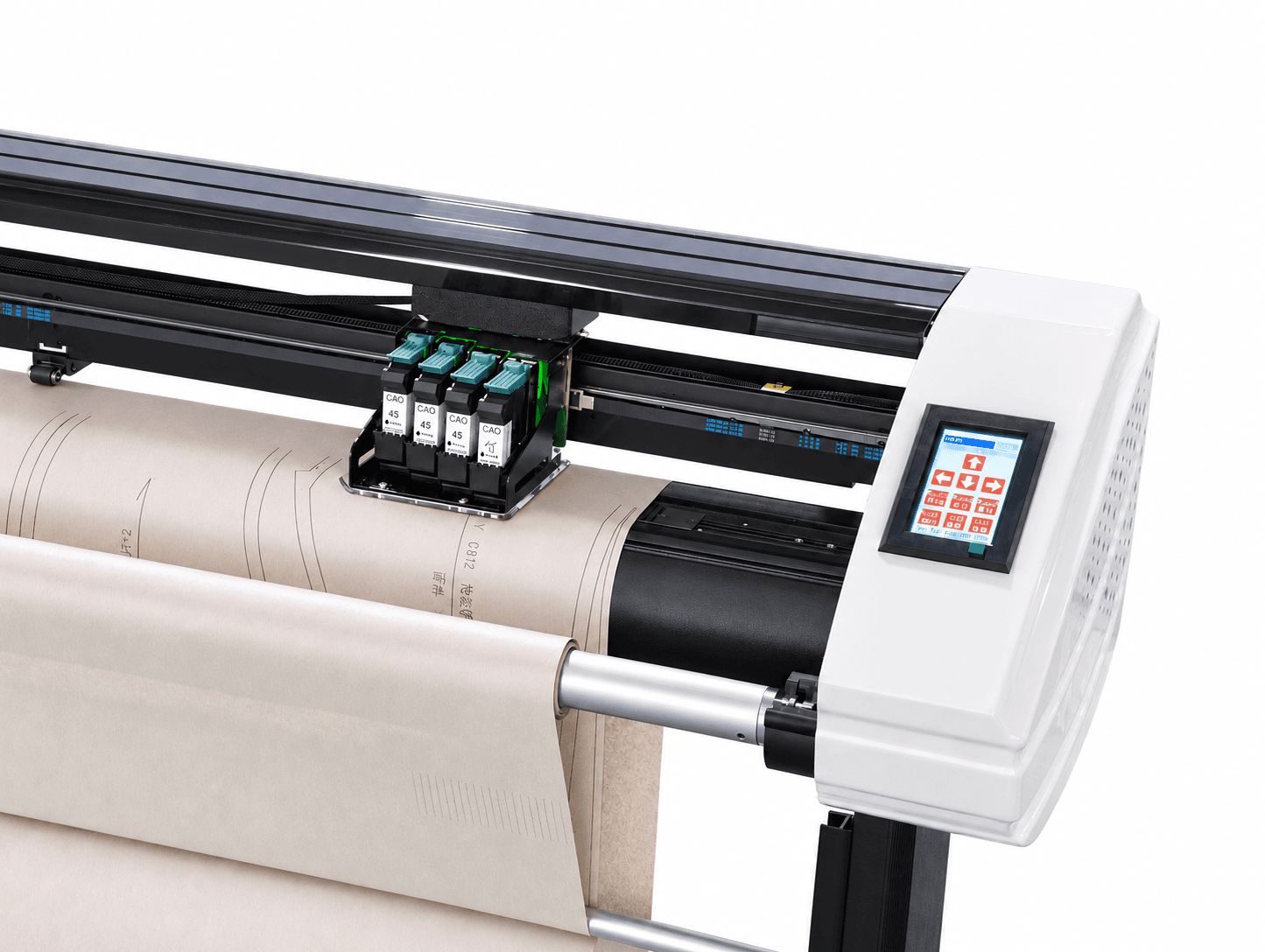

HP45 Inkjet Plotter
Practical pattern output for everyday production.
A Focused Place in the Pattern Workflow.
A cartridge-based garment plotter designed for the pattern printing stage of apparel production. It gives CAD rooms and pattern rooms a focused route from digital pattern files to physical paper output.
- High-speed plotting: up to 90 m²/h with 2 cartridges or 160 m²/h with 4 cartridges
- Easy-to-replace HP45A ink cartridges for stable print quality
- Continuous operation for long production runs
- Servo motor control for improved printing precision
- Paper transport designed to maintain alignment over 100 m
- Optional dual feeding for different drawing materials
Key Figures
Choose from five widths in either a 2-cartridge or 4-cartridge configuration.
- Print width · 2 / 4 heads
- 170–250 / 160–240 cm
- Max. speed · 2 / 4 cartridges
- 90 / 160 m²/h
- Plotting resolution
- 150–600 DPI
- Cartridge options
- 2 or 4 · HP45A
Designed for Practical Output.
Pattern Output Workflow
Automatic paper feeding supports continuous drawing, with an optional dual-feeding version. The paper transport system is designed to maintain alignment over 100 m.

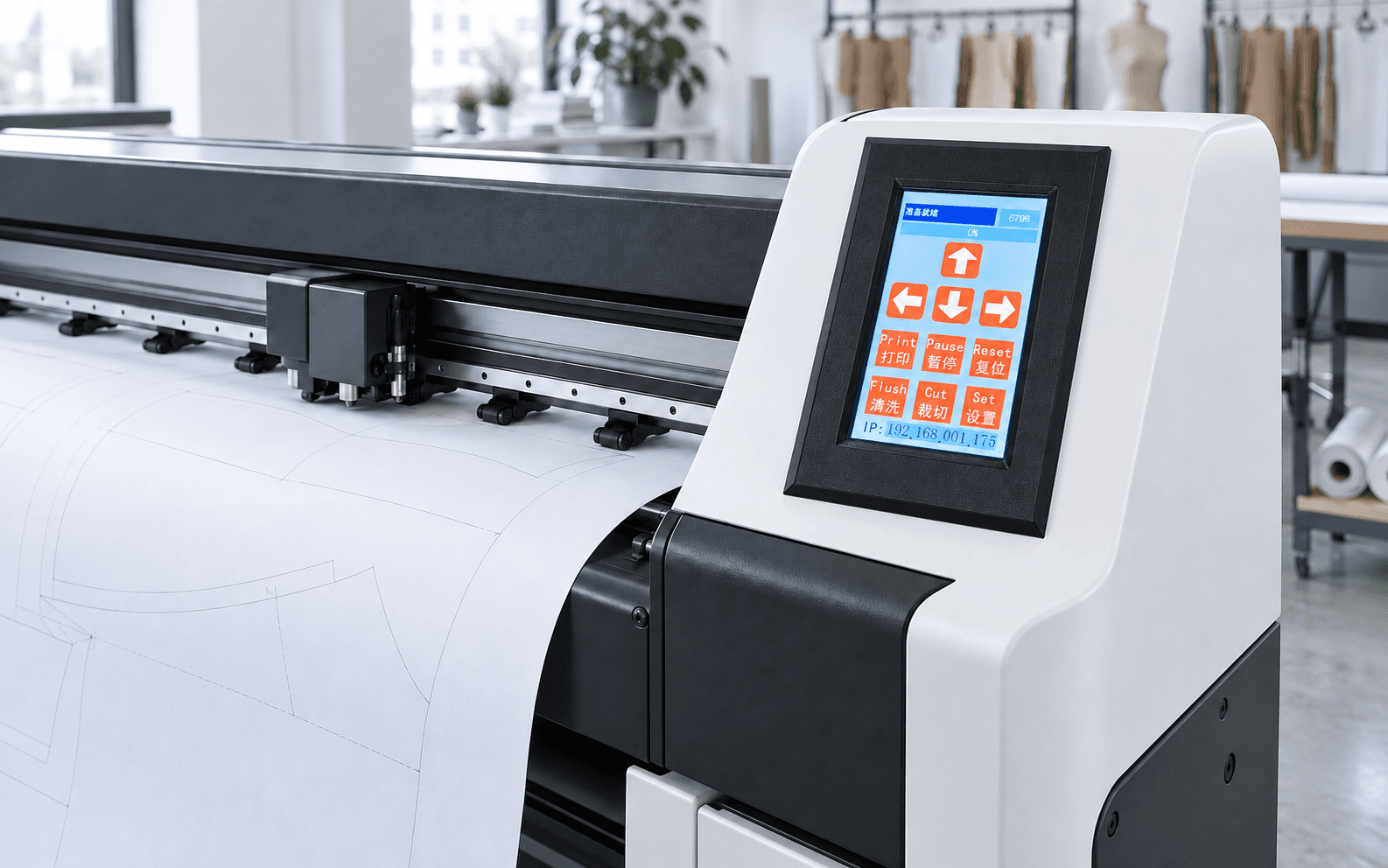

Operator Interface
Servo motor control improves printing precision. Connect by USB or network cable and plot HPGL / PLT files from most garment CAD software.
Technical Specifications
Dimensions are listed by model pair. Media weight is quoted as 40–120 g in the product sheet; the area basis is not specified.
Printing System
7 specifications- Number of cartridges
- 2 or 4
- Cartridge type
- Wecare 45A (HP45A)
- Maximum speed · 2 cartridges
- 90 m²/h
- Maximum speed · 4 cartridges
- 160 m²/h
- Plotting resolution
- 150–600 DPI
- Pixel options
- 1–8 pixels
- Motor control
- Servo motor system
Paper Handling
5 specifications- Paper feeding
- Automatic feeding
- Dual feeding
- Optional
- Media weight
- 40–120 g (as listed)
- Maximum paper load
- 50 kg
- Paper alignment
- 100 m continuous paper alignment
Connectivity & Operating Conditions
5 specifications- Hardware interface
- USB / Network cable
- Compatible software
- Most garment CAD software
- File formats
- HPGL / PLT
- Working temperature
- 0–40°C
- Power supply
- AC 220 V / 110 V ±10%, 50/60 Hz
WS-170GS / WS-160GS4
6 specifications- 2-head model
- WS-170GS
- Print width · 2 heads
- 170 cm
- 4-head model
- WS-160GS4
- Print width · 4 heads
- 160 cm
- Machine size (L × W × H)
- 225 × 45 × 103 cm
- Packing size (L × W × H)
- 250 × 49 × 56 cm
WS-190GS / WS-180GS4
6 specifications- 2-head model
- WS-190GS
- Print width · 2 heads
- 190 cm
- 4-head model
- WS-180GS4
- Print width · 4 heads
- 180 cm
- Machine size (L × W × H)
- 245 × 45 × 103 cm
- Packing size (L × W × H)
- 270 × 49 × 56 cm
WS-210GS / WS-200GS4
6 specifications- 2-head model
- WS-210GS
- Print width · 2 heads
- 210 cm
- 4-head model
- WS-200GS4
- Print width · 4 heads
- 200 cm
- Machine size (L × W × H)
- 265 × 45 × 103 cm
- Packing size (L × W × H)
- 290 × 49 × 56 cm
WS-230GS / WS-220GS4
6 specifications- 2-head model
- WS-230GS
- Print width · 2 heads
- 230 cm
- 4-head model
- WS-220GS4
- Print width · 4 heads
- 220 cm
- Machine size (L × W × H)
- 285 × 45 × 103 cm
- Packing size (L × W × H)
- 310 × 49 × 56 cm
WS-250GS / WS-240GS4
6 specifications- 2-head model
- WS-250GS
- Print width · 2 heads
- 250 cm
- 4-head model
- WS-240GS4
- Print width · 4 heads
- 240 cm
- Machine size (L × W × H)
- 305 × 45 × 103 cm
- Packing size (L × W × H)
- 330 × 49 × 56 cm
Product Gallery
Replace each prepared slot with verified WECARE machine photography.
