Epson Inkjet Plotter

Name: Epson Inkjet Plotter
Brand: WECARE SUPPLIES

Fast, wide-format garment pattern output with an Epson TX600 printhead.

Request Information View Brochure

A Focused Place in the Pattern Workflow.

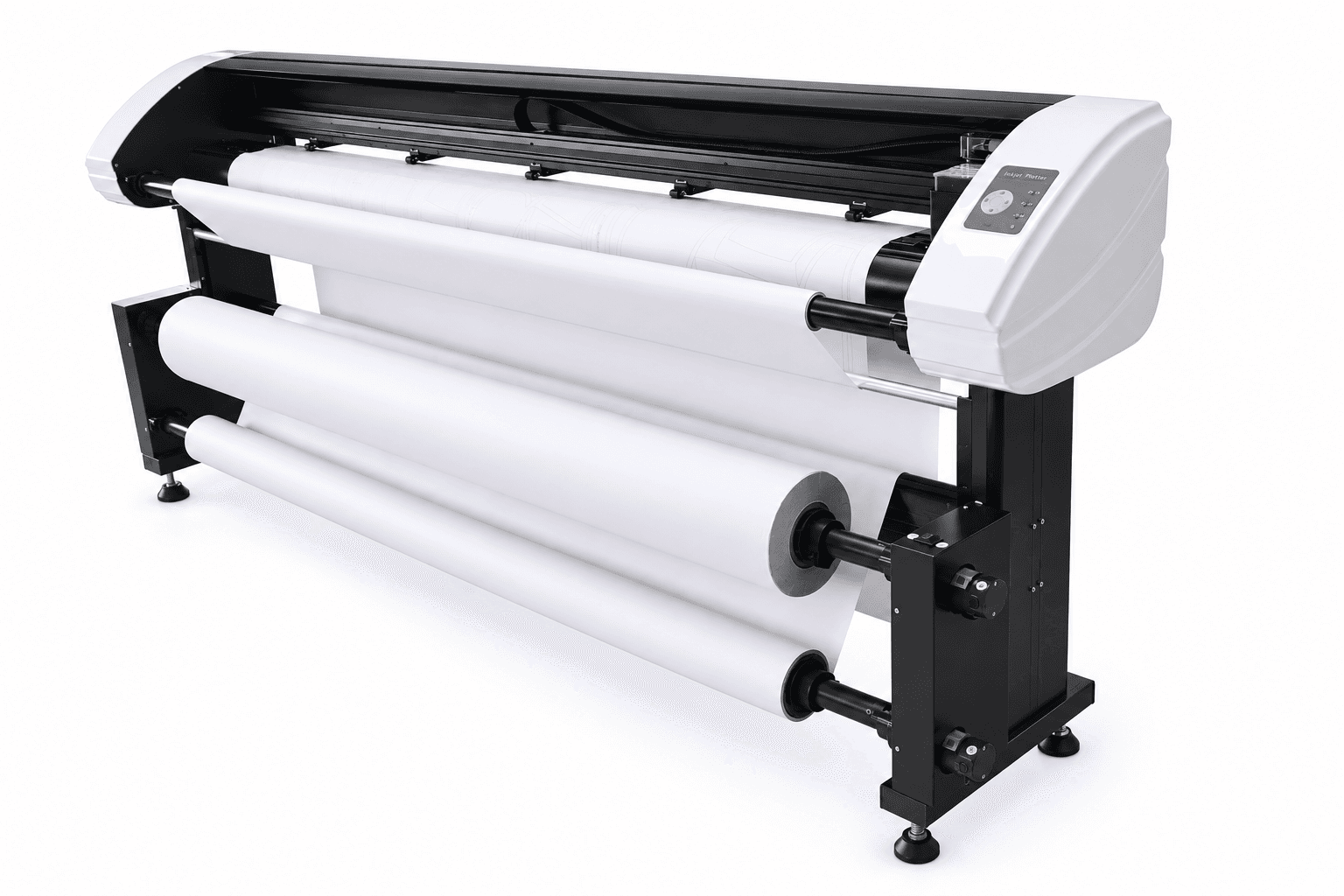

A high-speed garment pattern plotter built around an Epson TX600-class printhead. Five configurations cover print widths from 125 to 225 cm, with automatic media delivery, a 50 kg roll capacity and networked HP-GL / PLT output for apparel CAD workflows.

Five print widths from 125 to 225 cm
Dual-spray bidirectional printing at up to 100 m²/h
Epson TX600-class 25 mm printhead with an independent 220 mL cartridge
Automatic pre-print cleaning with manual cleaning support
Roll-fed CAD and kraft paper support from 40–120 g/m²
TCP network connection for direct or multi-computer control

Key Figures

Five width configurations are available, from the WS-EPB-125L to the WS-EPB-225L.

Print width: 125–225 cm
Maximum printing speed: Up to 100 m²/h
Printhead: Epson TX600 · 25 mm
Ink capacity: 220 mL

Designed for Practical Output.

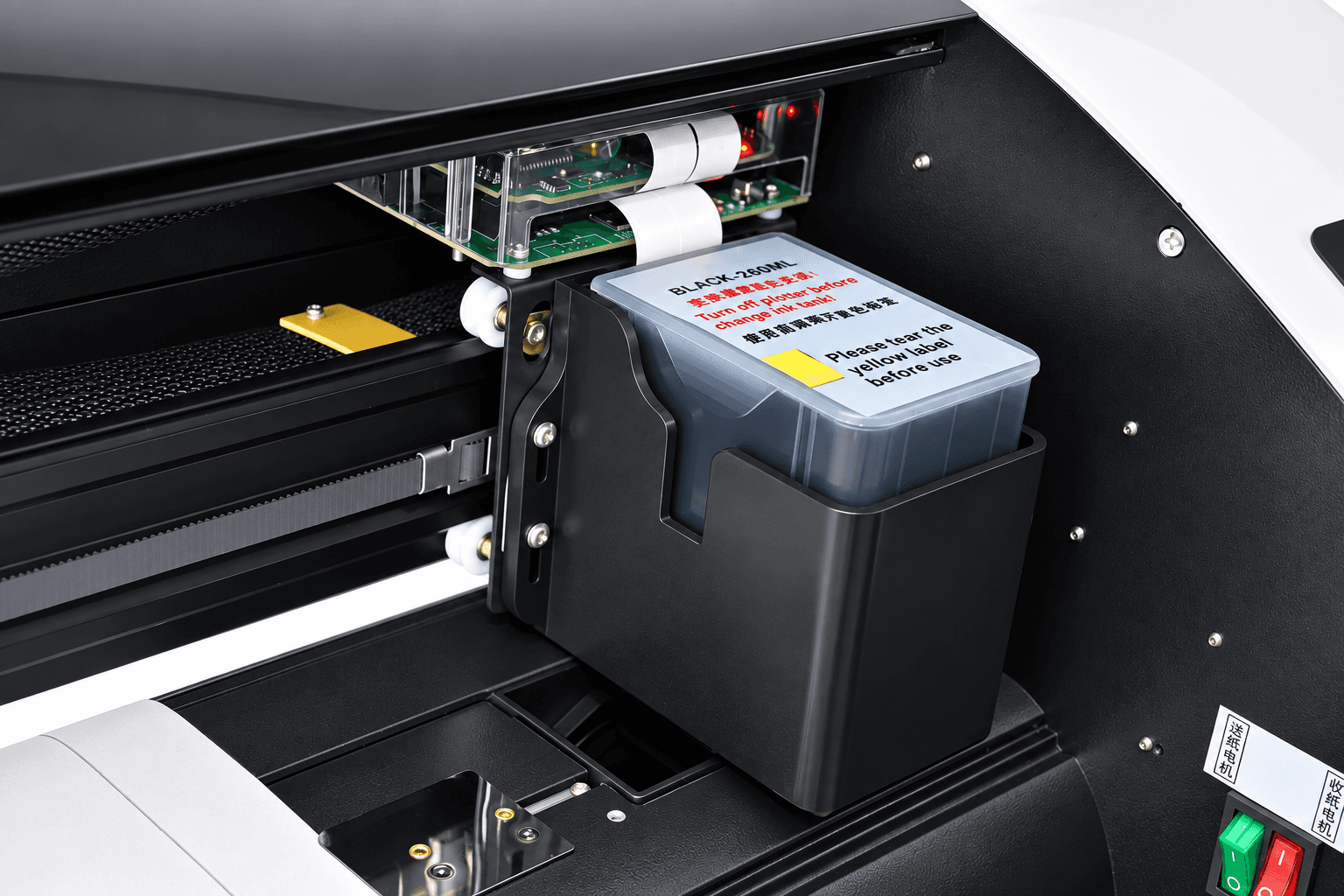

Epson TX600 Printing System

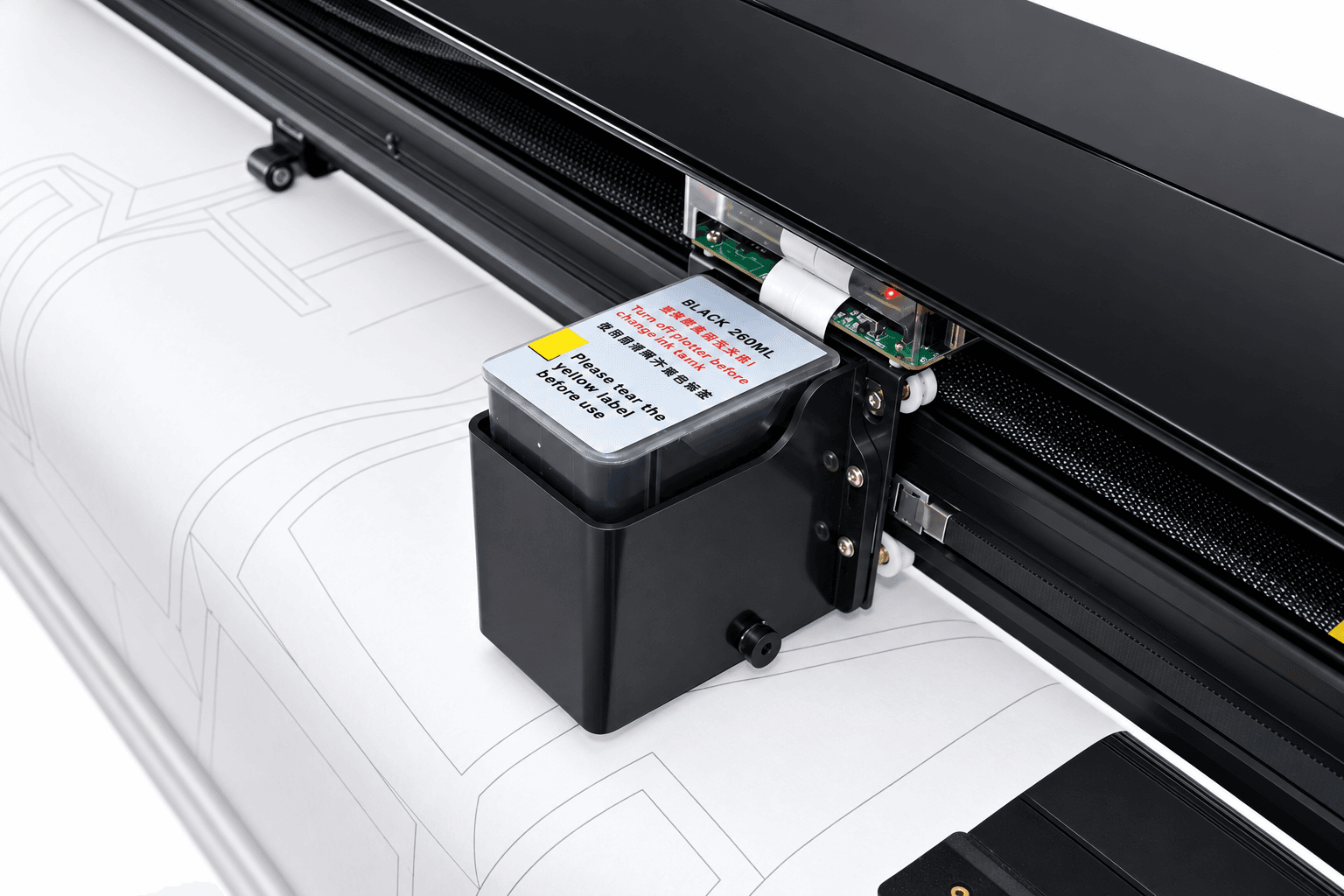

The 25 mm Epson TX600-class printhead supports dual-spray bidirectional output at up to 100 m²/h. An independent 220 mL cartridge and automatic pre-print cleaning simplify daily operation.

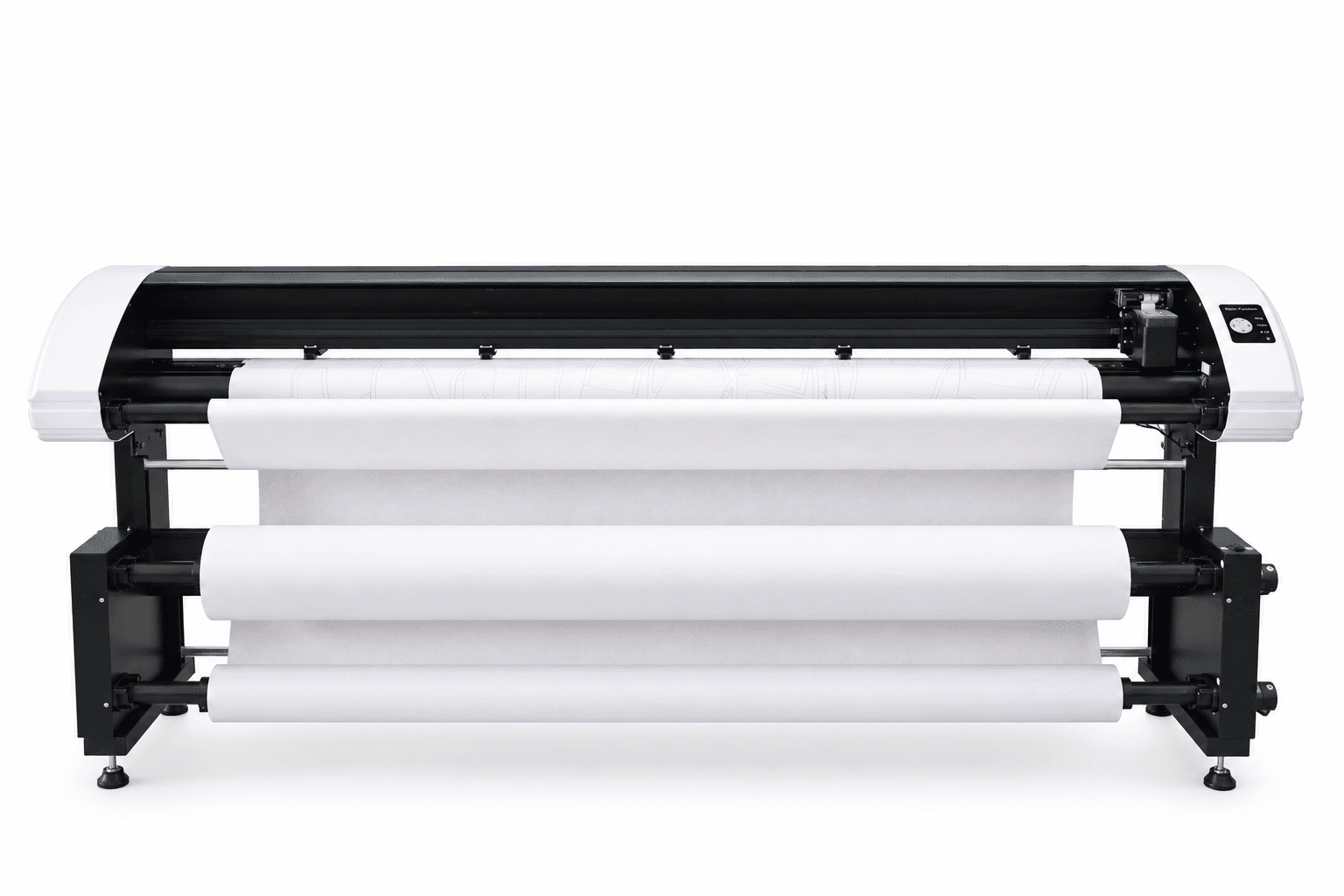

Five Wide-Format Configurations

Choose a 125, 165, 185, 205 or 225 cm maximum print width. Automatic delivery, sensor-assisted paper handling and a 50 kg roll capacity support continuous pattern-room output.

Networked CAD Control

Send HP-GL / PLT files through the TCP network port from garment CAD software. The control system supports direct connection or router-based multi-computer operation, real-time status and automatic pagination.

Technical Specifications

Values are transcribed from the supplied Epson TX600 product sheet. Printing speed is listed for dual-spray bidirectional operation.

Printing System

5 specifications

Printhead: Epson TX600-class, 25 mm wide
Ink capacity: Independent 220 mL cartridge
Maximum printing speed: Up to 100 m²/h (dual-spray, bidirectional)
Printhead cleaning: Automatic cleaning before printing; manual cleaning supported
Line thickness: Selectable from 1–8 pixels

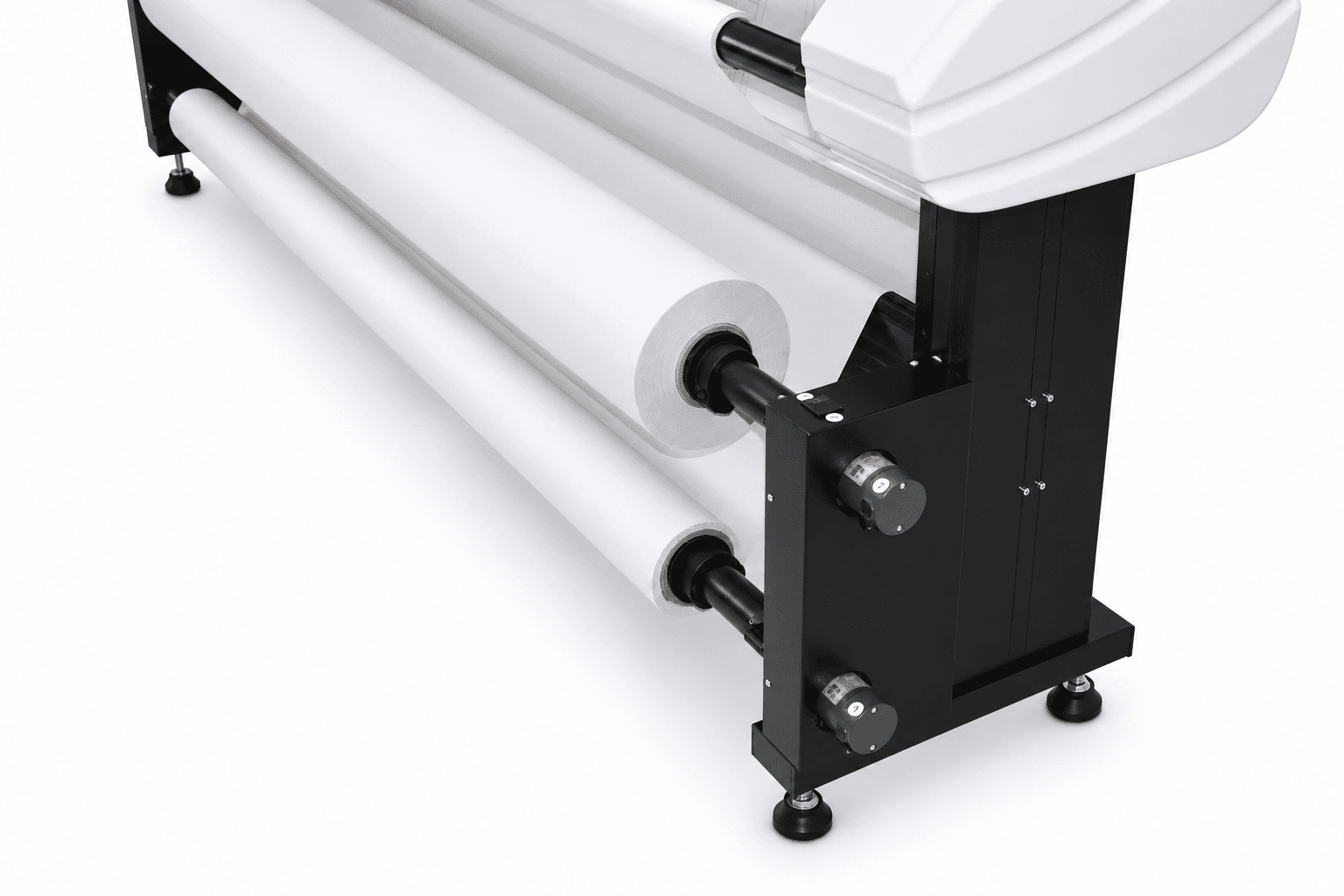

Media Handling

4 specifications

Supported media: Roll-fed CAD marker paper and kraft paper
Media weight: 40–120 g/m²
Maximum roll weight: 50 kg

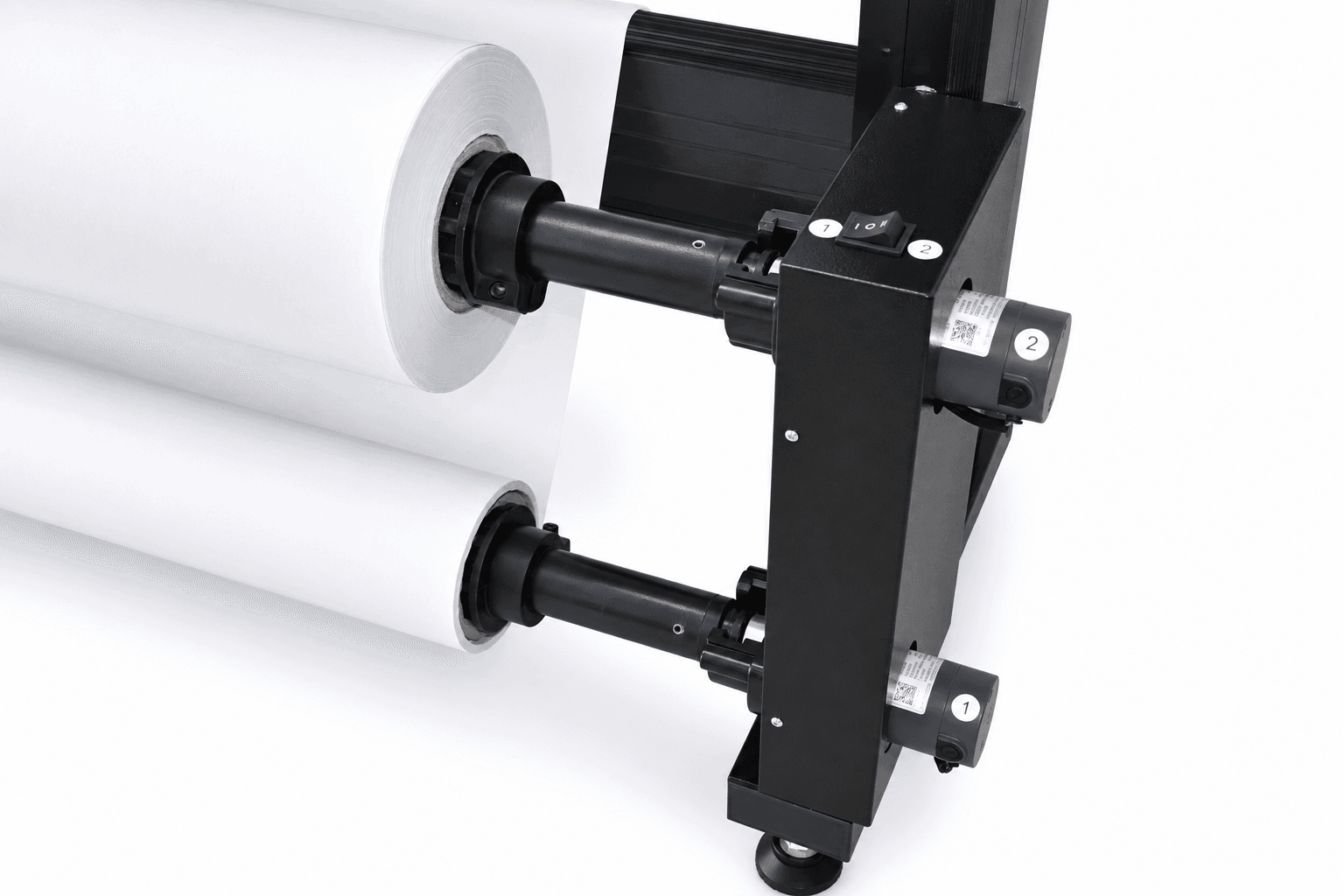

Paper handling: Front automatic delivery with hidden sensor and automatic take-up

Connectivity & Control

6 specifications

Interface: TCP network port
Network connection: Direct computer connection or router-based multi-computer control; supports 1–100 m network cable
Plotter language / file: HP-GL / PLT
CAD compatibility: Compatible with garment CAD software
Control software: Windows XP / NT / 2000 / 10; real-time status, manual or automatic printing, device settings, segment printing and automatic pagination

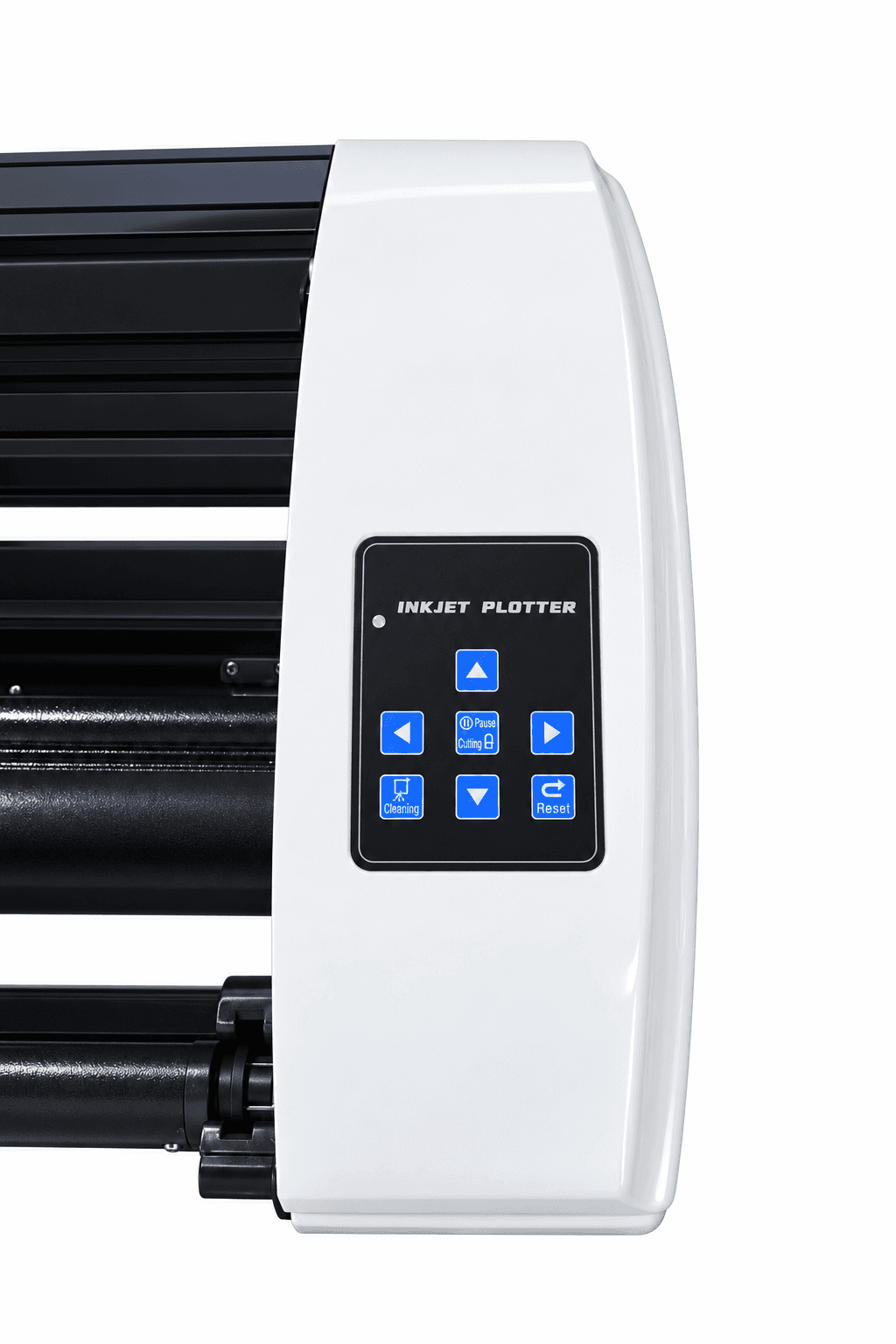

Operation panel: Touch-button panel with Chinese and English display

Construction & Operating Conditions

5 specifications

Machine structure: Reinforced die-cast aluminum-alloy construction with standardized modular components
Drive motor: Closed-loop motor control for accurate positioning
Recommended UPS: 600 W minimum
Operating temperature: 1–35°C
Operating humidity: 15–85% RH, non-condensing
